OWOX Data Marts

Looker Studio

Looker Studio is a powerful data visualization tool that allows users to create interactive dashboards and reports.
Integration with Looker Studio as a Destination for OWOX Data Marts enables seamless data access and visualization.

Step 1. Create a Destination entity

Section titled “Step 1. Create a Destination entity”

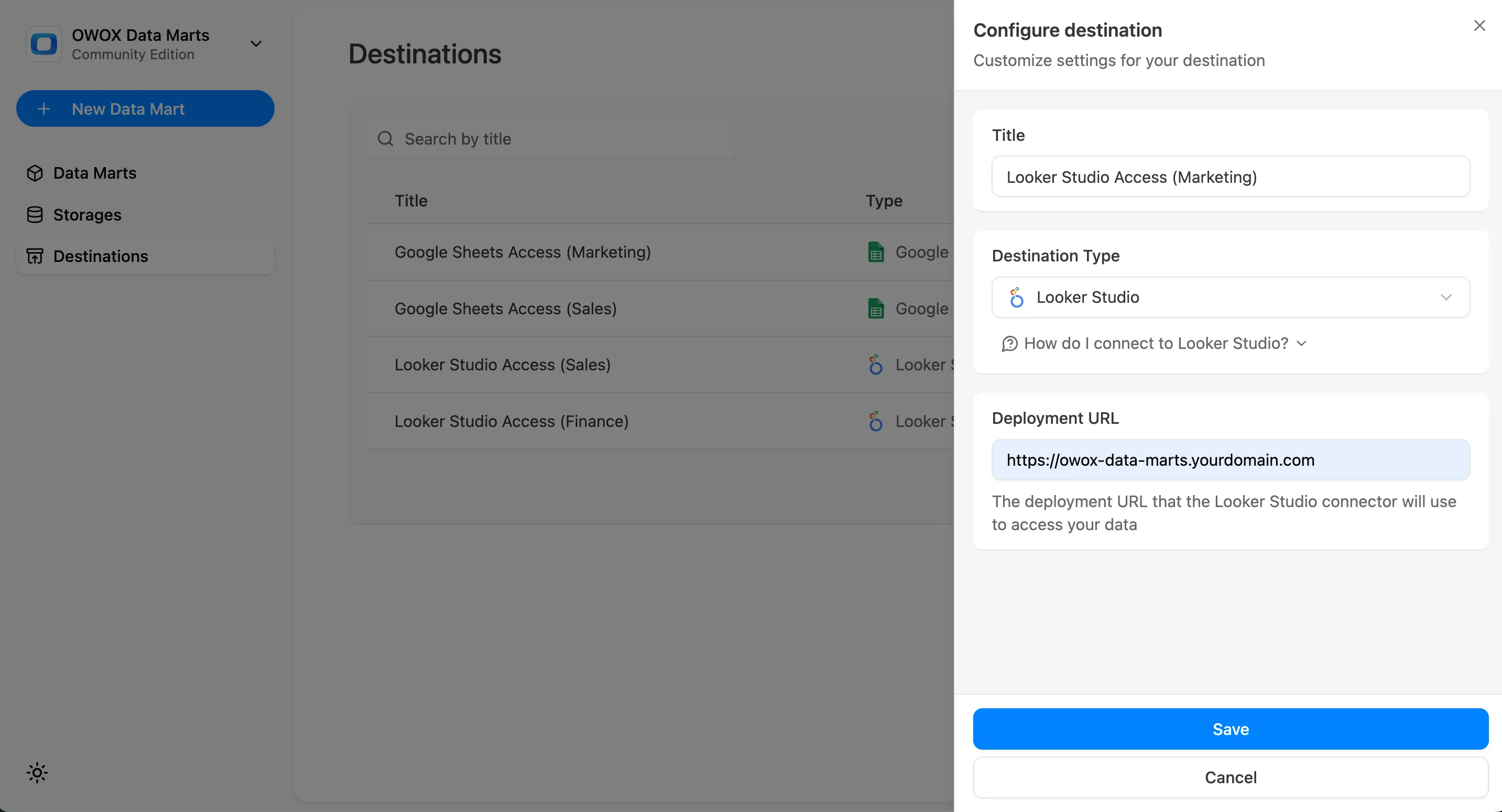

  • In the OWOX Data Marts web application, navigate to Destinations from the main navigation pane and click + New Destination.
  • Select Looker Studio from the Destination Type dropdown.
  • Provide a Title — a unique name for this Destination (e.g., “Looker Studio Access (Marketing Team)”).
  • Enter the Deployment URL that Looker Studio will use to initiate the connection to OWOX Data Marts:
    • Use a secure URL (HTTPS is recommended) to protect data in transit. Example: https://owox-data-marts.yourdomain.com.
    • Ensure your OWOX Data Marts server is deployed with a publicly accessible endpoint (e.g., via a domain or load balancer).
      • If you use additional authorization to access your OWOX Data Marts server, make sure URLs with the pattern /api/external/looker/* are accessible over the internet and point to your OWOX Data Marts instance.
  • Click Save.

Create Data Mart-1

Step 2. Make a Data Mart accessible for Looker Studio

Section titled “Step 2. Make a Data Mart accessible for Looker Studio”

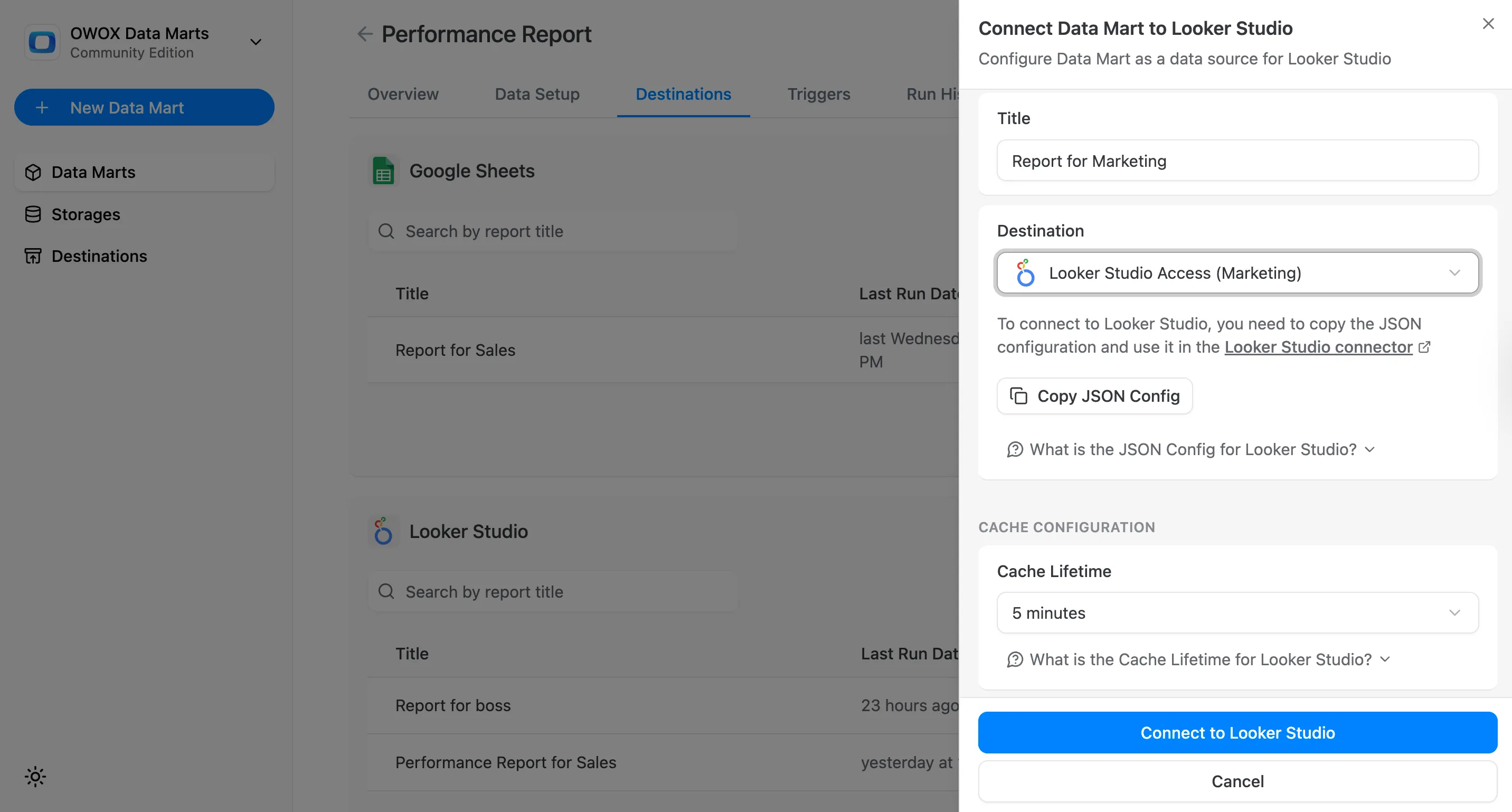

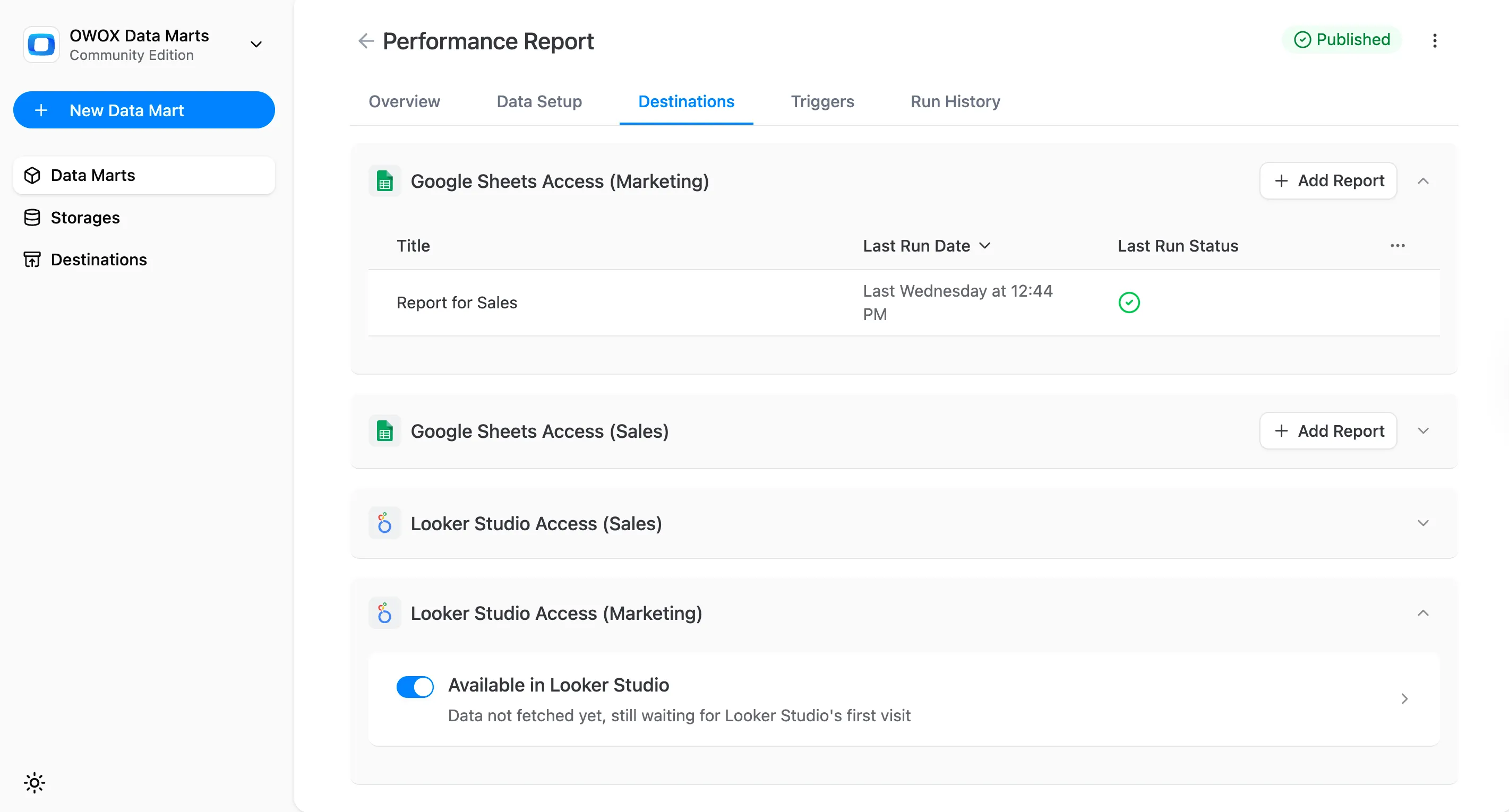

  • Open the Data Mart you want to make accessible in Looker Studio and go to the Destinations tab.
  • In the Looker Studio section, click + Add Report.
  • Provide a Title — a unique name for this connection (e.g., “Report for Marketing”).
  • Select the Destination entity you created previously.
  • Adjust the Cache Lifetime based on how you want to control data freshness when Looker Studio requests this data:
    • This defines the period during which results from previous query executions are served from the storage-side cache, eliminating the need to re-execute the query.
  • Copy the JSON Config to your clipboard and click Save.

Create Data Mart-1

Step 3. Add a Data Source in Looker Studio

Section titled “Step 3. Add a Data Source in Looker Studio”
  • Find the OWOX Data Marts connector in Looker Studio’s Gallery.
  • Authorize with your Google Account (Looker Studio requires authorization to connect to data).
  • Provide a Configuration Display Name — a unique name to help you distinguish different connections (e.g., “Marketing Data Connection”).
  • Paste the value from your clipboard into the JSON Config field and click Next.
  • Select the Connection Configuration you created previously and click Next.
  • Select a Report based on the Data Mart available via the provided Destination entity and click Connect.
  • Make sure all the required fields are connected this Looker Studio’s data source and click Create Report or Explore.
    • You can control the name and description of fields shown in Looker Studio via the Output Schema of the Data Mart in your OWOX Data Marts web application.

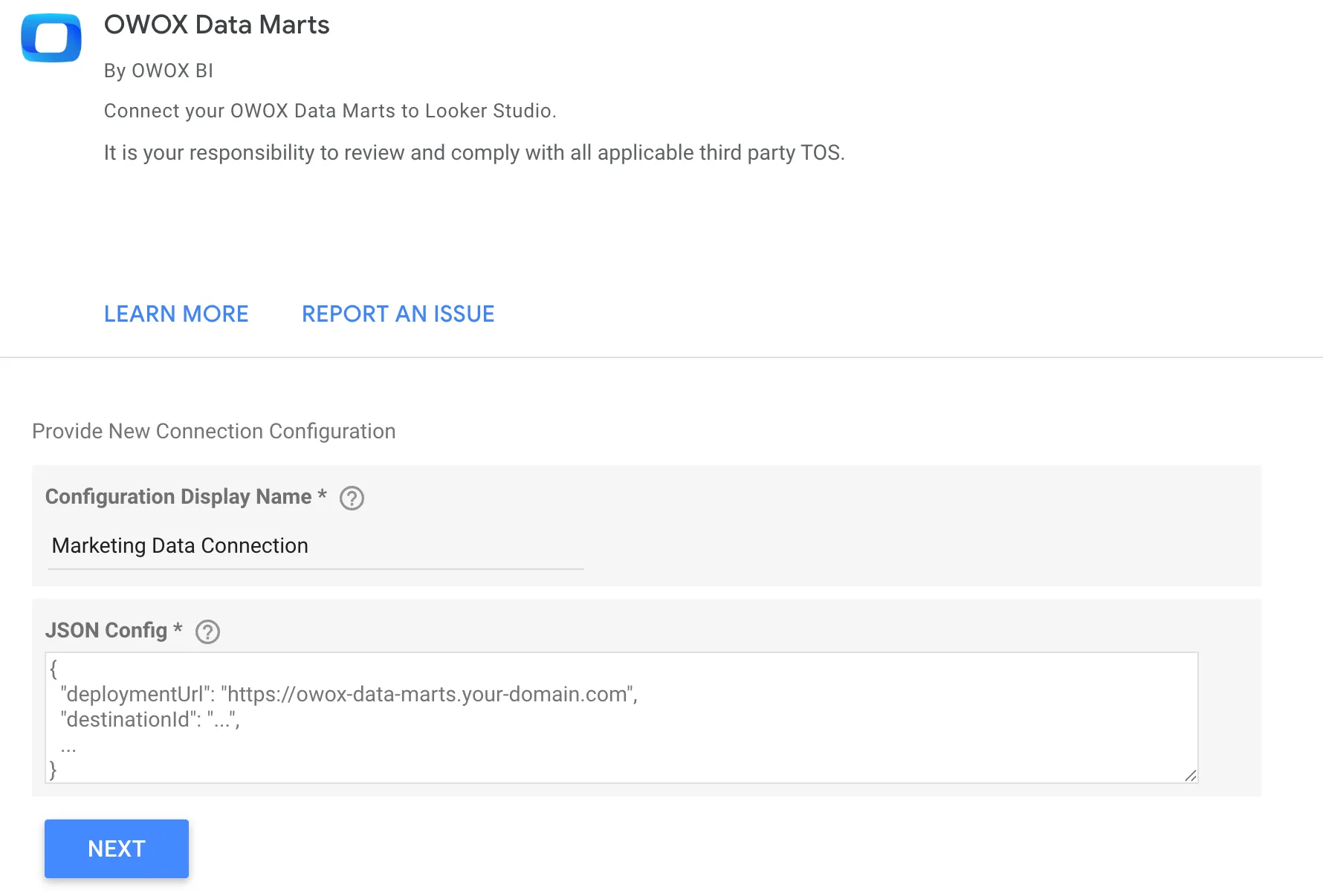

Connector in Looker Studio (first step):

Create Data Mart-1

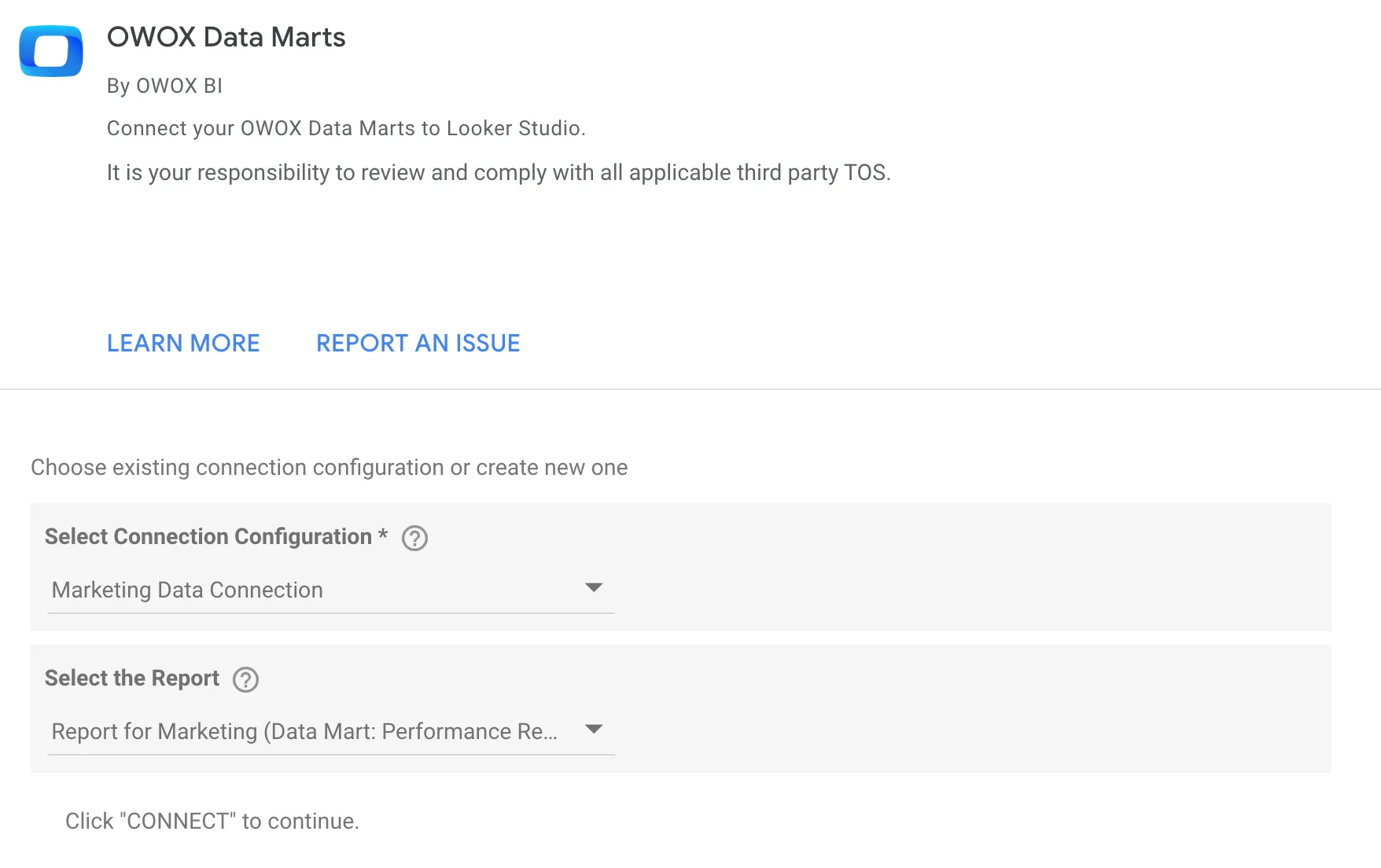

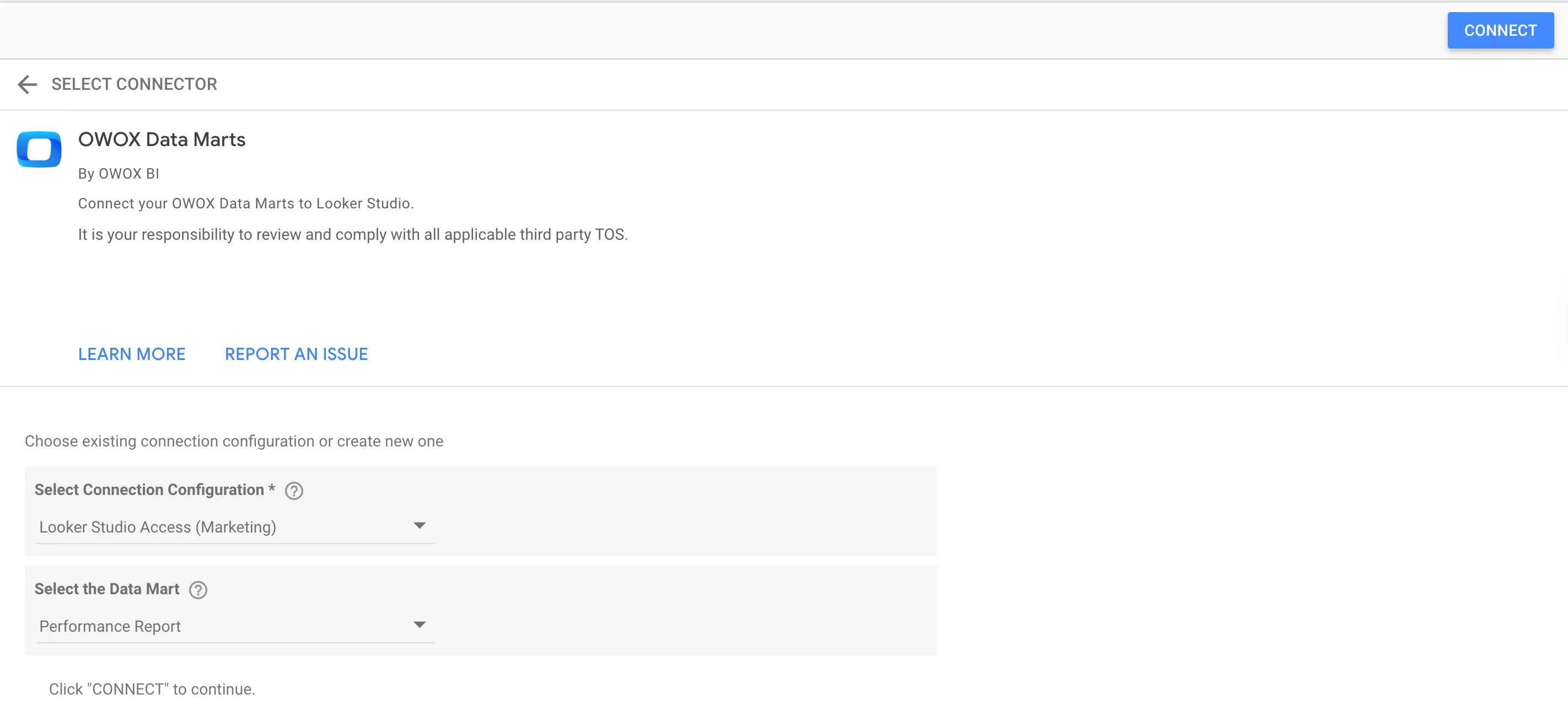

Connector in Looker Studio (second step):

Create Data Mart-1

For additional guidance or troubleshooting, refer to the OWOX Community
