MCP Server

New to OWOX MCP? See what it does and who it’s for or book a demo.

OWOX Data Marts exposes a Model Context Protocol (MCP) server. It lets AI assistants and MCP-compatible clients connect to your project data using standard OAuth authorization.

Use the MCP server to explore your data marts in plain language with an AI assistant like Claude or ChatGPT. You never have to leave the assistant. The assistant can summarize the available catalog and inspect data mart fields. It can run bounded queries, list destinations and reports, and set up report delivery. It can also manage report schedules and start report runs for supported push destinations. Authorized users can also configure and publish Data Marts, maintain their models, inspect previews, and manage connector runs. Editors can create, test, publish and maintain custom connectors. See Available tools for exactly what it can and cannot do.

Prerequisites

• An active OWOX Data Marts project. Reporting queries require a published Data Mart that you can see. Authorized users can create and finish Data Marts through setup tools or the web app. See the connector-based and SQL-based guides for source requirements.
• One of the supported clients: Claude Desktop or Claude web (claude.ai) — the recommended way to connect — or ChatGPT. Any other client that supports the MCP Streamable HTTP transport with OAuth 2.0 will also work.
• A client plan that allows MCP connectors. Adding an MCP server like OWOX may require a paid plan in Claude or ChatGPT. Check your client’s current plan requirements.

Step 1: Connect your AI assistant

Set up whichever assistant you use — you only need one. We recommend Claude Desktop or Claude web as the default client. Connect to the shared MCP server, https://mcp.owox.com/mcp: the client discovers its OAuth endpoints and registers itself automatically, so there is no client ID, secret, or token to copy. You select your project during authorization — see Step 2.

Note: Connecting to multiple projects, or scripting the setup from a URL your OWOX UI or API already gave you? See Use a project-specific URL below.

Claude Desktop (recommended)

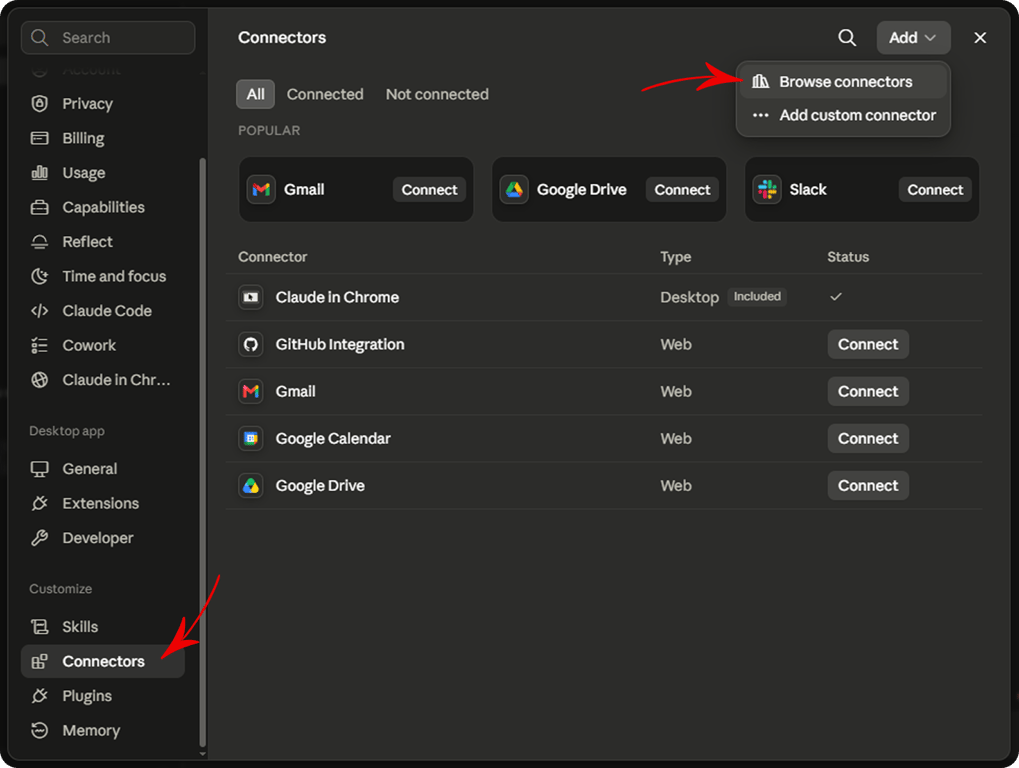

1. Open Claude and go to Settings → Connectors.

2. Click Add → Browse connectors.

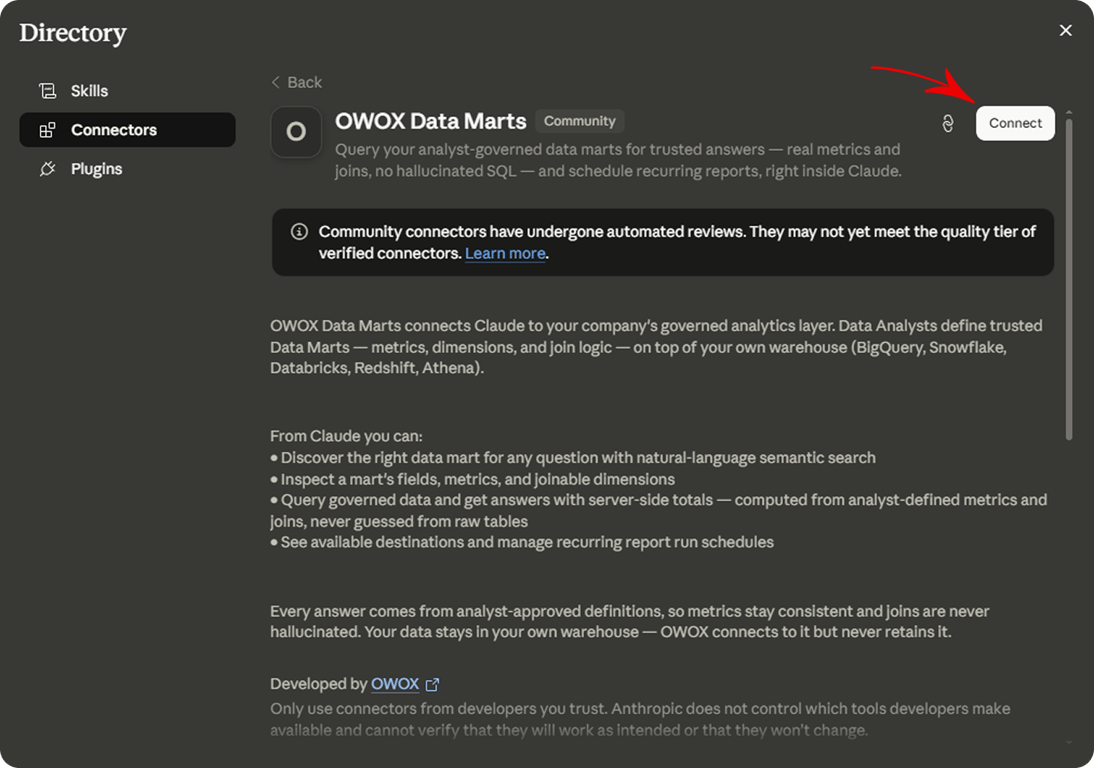

3. Find OWOX Data Marts and click Connect.



4. Claude opens a browser window to complete authorization. Follow the steps in Step 2.

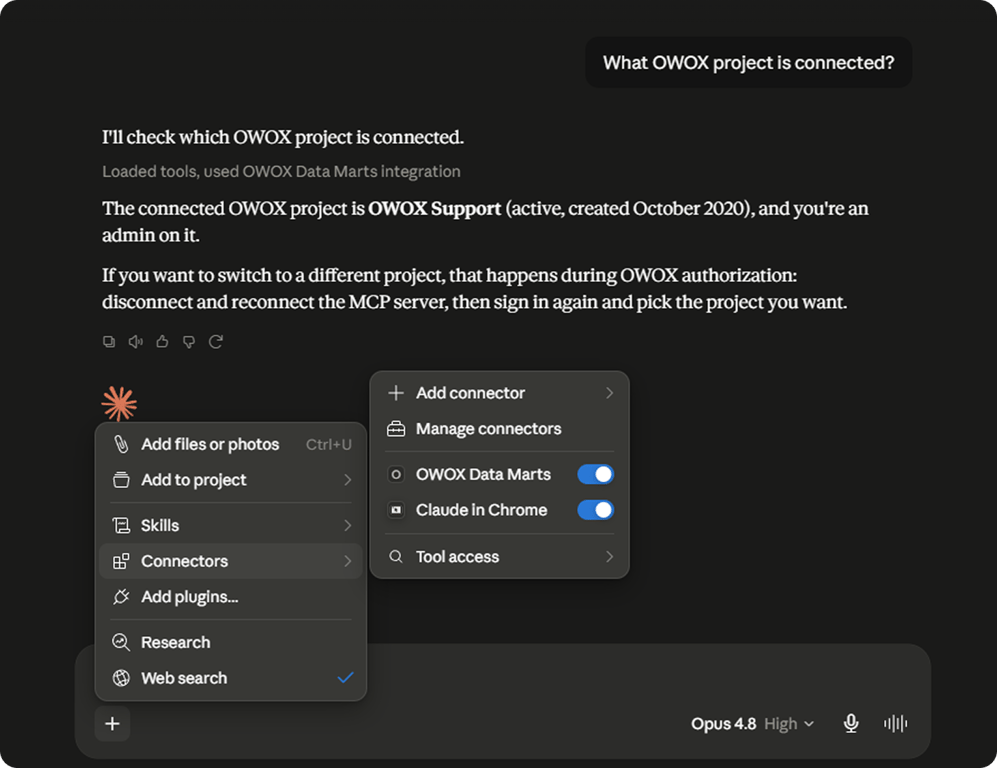

To confirm your MCP server is configured correctly, open the Connectors section and check that OWOX Data Marts is enabled.

Claude web (claude.ai)

1. Open claude.ai and go to Settings → Connectors.
2. Click Add → Browse connectors.
3. Find OWOX Data Marts and click Connect.
4. Claude opens an authorization flow in the same browser. Follow the steps in Step 2.

ChatGPT

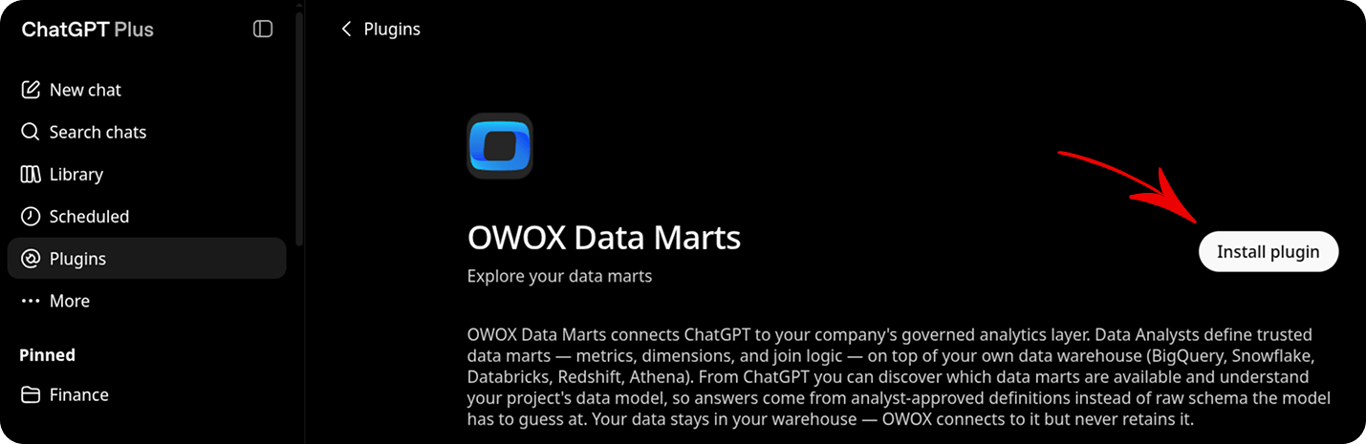

1. Open ChatGPT and go to Plugins.
2. Find OWOX Data Marts in the list of plugins and click Install plugin.
3. Click Sign in with OWOX Data Marts. ChatGPT opens an authorization window. Follow the steps in Step 2.

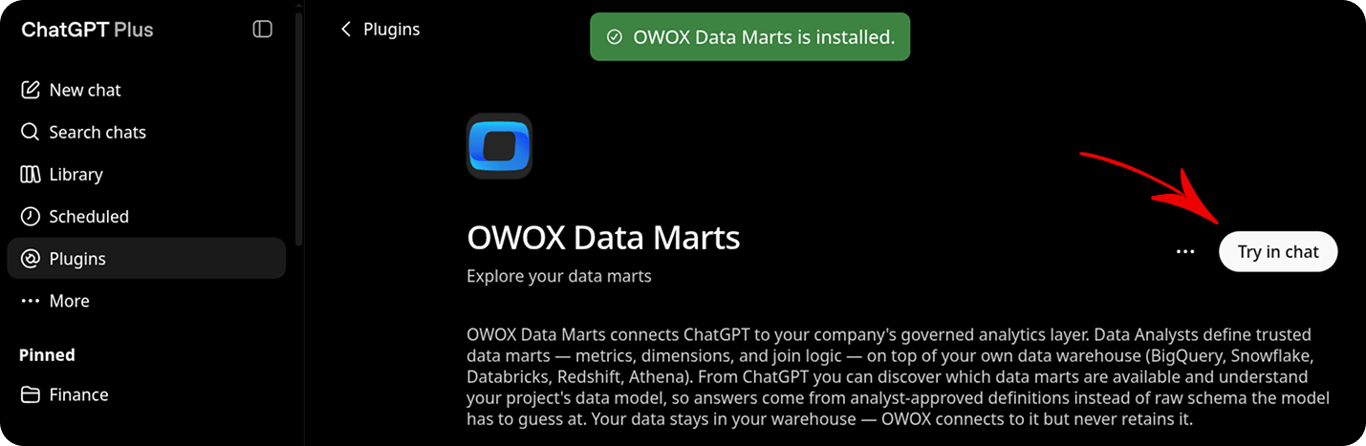

4. You will see OWOX Data Marts is installed, indicating the integration is connected.
5. Click Try in chat.

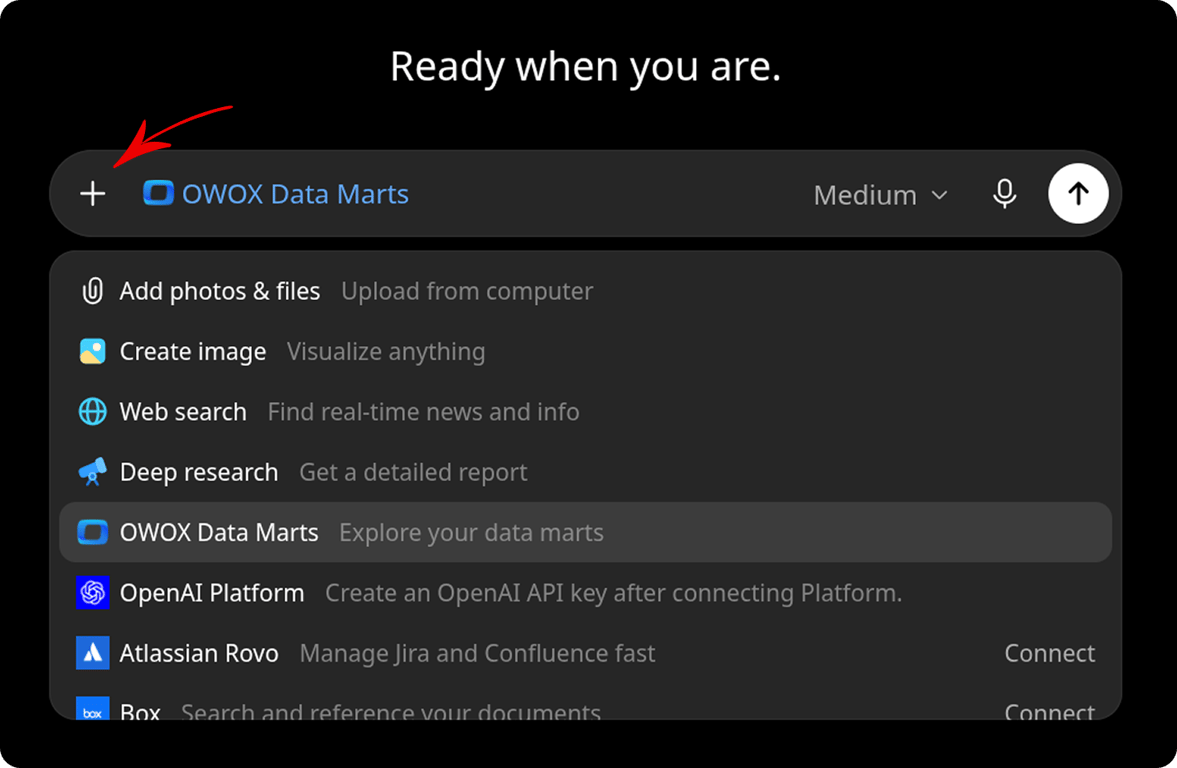

6. In a new chat, select or enable the OWOX plugin if ChatGPT does not use it automatically.

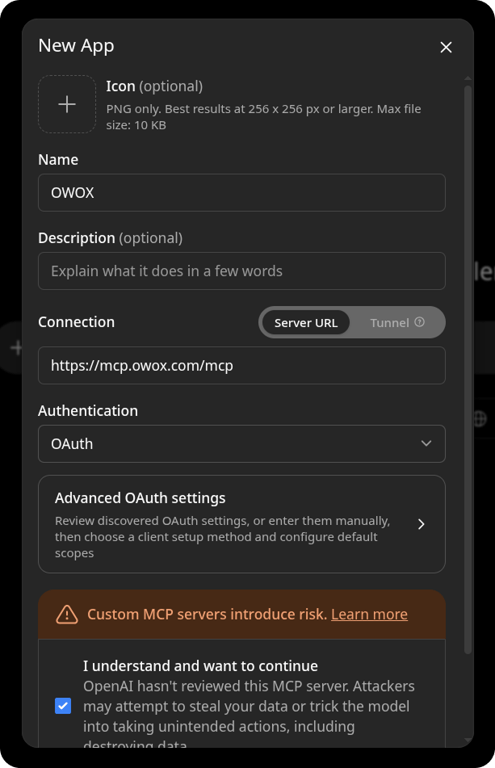

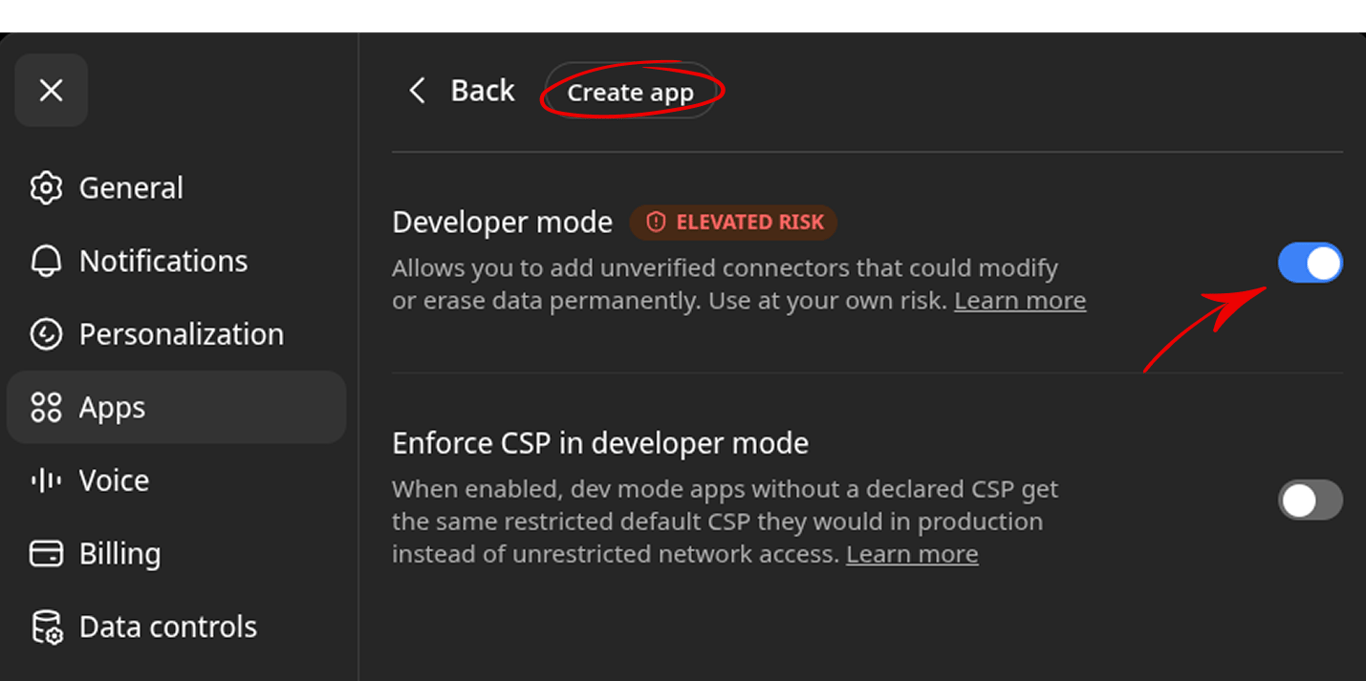

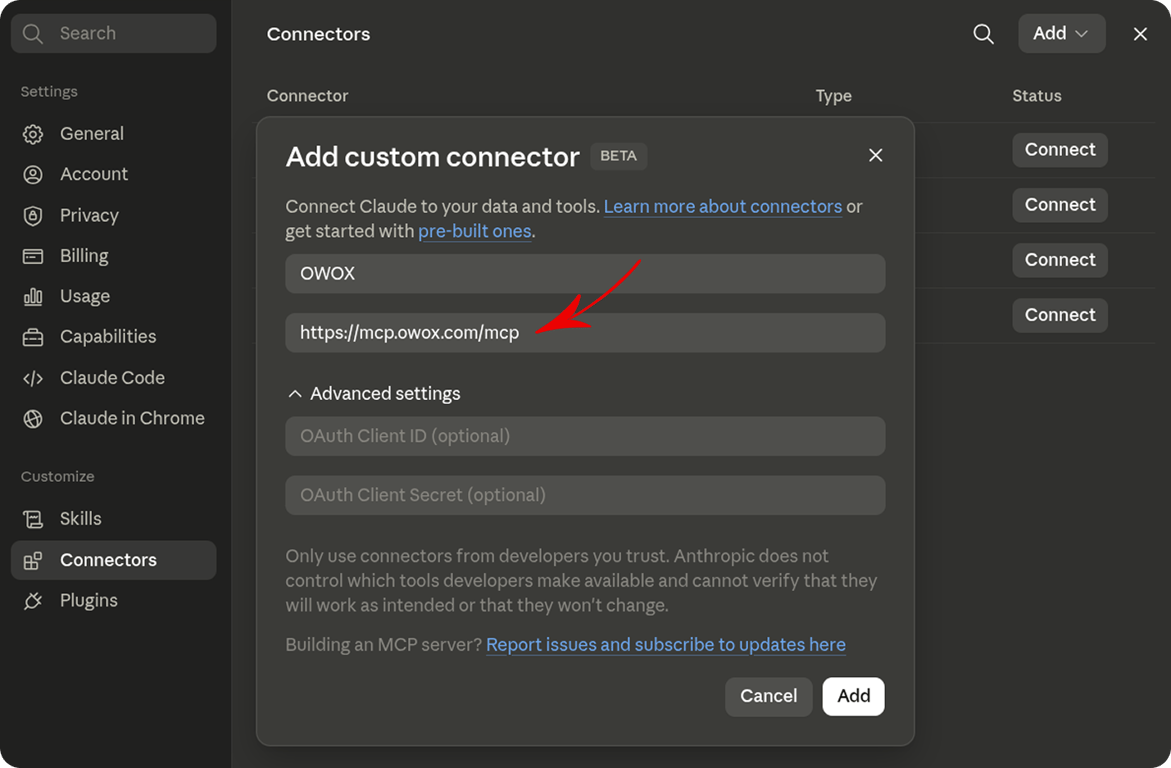

Use a project-specific URL

The steps above connect the shared MCP server and let you pick a project during authorization. If OWOX UI or API already gave you a project’s URL — https://{projectId}.mcp.owox.com/mcp — you can connect that instead: add it as a custom connector rather than picking OWOX Data Marts from the client’s connector directory (in Claude, use Add → Add custom connector). The projectId is already in MD5 format; it is only a stable URL identifier and does not grant access by itself.

A project-specific URL uses the same OAuth flow and the same MCP tools as the shared one, but it skips the project selection screen in Step 2 — authorization still succeeds only if the signed-in user is an active member of that project.

If you connect project-specific MCP servers for multiple projects, give each connection a unique name, such as Marketing or Finance. This makes it easier to select the right server and tell your assistant which project’s MCP tools to use.

Step 2: Authorize access

When the MCP client first connects, it opens a browser window to complete OAuth 2.0 authorization. You only complete two interactive steps:

1. Sign in to your OWOX account if you do not already have an active session.
2. Select a project — for https://mcp.owox.com/mcp, if you belong to more than one project, a selection screen appears. Choose the project you want this MCP connection to use and click Next. If you use https://{projectId}.mcp.owox.com/mcp, this screen is skipped because the project is already part of the server URL.

There is no separate permissions-consent screen. Once you sign in and select a project, the client receives an access token. It uses that token automatically for all subsequent requests. The token is bound to the project you selected and to the requested scope.

Access tokens are short-lived, and the client refreshes them automatically in the background — you stay connected without signing in again. You only need to reconnect manually if the refresh fails — for example, after your OWOX session is revoked. You also reconnect manually when you want to switch projects.

Add project context for your assistant

Project admins can provide up to 10,000 characters of business context, terminology, and project-specific conventions for AI assistants in Project settings → Overview → Description. OWOX returns the complete description through get_project_context; the MCP instructions tell the assistant to call that tool before its first project-specific operation.

Do not put passwords, API keys, or other secrets in the description. All project members can see it, and connected MCP clients may send it to their AI provider. After changing the description, the updated value is available on the next get_project_context call; reconnecting the MCP client is not required.

Step 3: Verify the connection

Confirm everything works before relying on it. In your assistant, send:

Which OWOX project am I connected to?

The assistant calls the get_project_context tool and replies with your project title, your role, and the project status. If you see your project name, the connection is working. If instead you get an authorization or “no tools available” error, see Troubleshooting.

Switch projects or disconnect

Project selection is fixed when you authorize. Switching projects means reconnecting with the shared server and selecting another project, or reconnecting with a different project-specific server URL. Where you manage the connection depends on the client:

• Claude Desktop / Claude web: Settings → Connectors, then open the OWOX connector to disconnect or reconnect it.
• ChatGPT: Settings → Apps, then open the OWOX app to disconnect or reconnect it.

To switch projects, disconnect, then reconnect and sign in again. If you use the shared server, choose the project during authorization. If you use a project-specific server, use the URL for the target project.

Available tools

Once connected, the MCP server exposes the following tools across two scopes:

• mcp:read: discovery and status tools — summarize_data_catalog, get_project_context, list_contexts, get_context_impact, list_project_members, get_project_settings, list_custom_connectors, get_custom_connector, get_custom_connector_version, get_custom_connector_specification, get_custom_connector_fields, list_data_marts, get_relevant_data_marts_by_prompt, get_data_mart_details_by_id, list_storages, get_storage, validate_storage_access, list_storage_resources, list_destinations, get_destination, get_destination_impact, get_data_mart_reports, get_relevant_reports_by_prompt, get_report_output_schema, list_report_run_schedules, get_report_run_status, list_credential_definitions, list_credentials, get_credential, get_credential_setup_status, get_connector_fields, get_connector_specification, list_connectors, get_data_mart_change_impact, get_data_mart_setup, list_setup_data_marts, get_data_mart_run, list_data_mart_run_schedules, list_data_mart_runs, list_data_mart_relationships.
• mcp:write: tools that create, change, run, or bill something — create_context, update_context_metadata, set_context_members, delete_context, update_project_description, create_custom_connector, update_custom_connector, save_custom_connector_draft, test_custom_connector, publish_custom_connector, activate_custom_connector_version, delete_custom_connector, query_data_mart, create_storage, update_storage, set_storage_access, delete_storage, add_destination, update_destination, set_destination_access, delete_destination, rotate_destination_secret_key, add_report, update_report, delete_report, create_report_run_schedule, update_report_run_schedule, delete_report_run_schedule, run_report, update_credential, validate_credential, consent_credential_definition, delete_credential, start_credential_setup, preview_connector_field_options, preview_connector_fields, actualize_data_mart_schema, create_data_mart, delete_data_mart, publish_data_mart, set_data_mart_contexts, set_data_mart_owners, set_data_mart_sharing, update_data_mart_definition, update_data_mart_description, update_data_mart_icon, update_data_mart_schema, update_data_mart_title, validate_data_mart, cancel_data_mart_run, create_data_mart_run_schedule, delete_data_mart_run_schedule, run_data_mart, update_data_mart_run_schedule, create_data_mart_relationship, delete_data_mart_relationship, preview_data_mart, update_data_mart_relationship. query_data_mart and the report-run schedule mutation tools also require mcp:read. query_data_mart reads data rows, records each call in Run History, and costs credits per call. Your MCP client may ask you to confirm before it calls one of these.

Custom connector metadata and schema reads require mcp:read. Reading a complete version manifest also requires editor access. Custom connector writes and live tests require mcp:write. See Custom connector authoring.

Data Mart setup, model, connector, and execution tools follow the scope and permission rules in Data Mart setup, models, and execution.

Storage and Destination operations enforce resource permissions. See Storage management and Destination management.

summarize_data_catalog

Returns a high-level summary of the published data mart catalog available to this MCP connection. It helps the assistant answer broad orientation questions like “What data is available here?” or “Where should I start?” without querying actual data rows.

Returns:

Field	Description
project_id	Project identifier
data_mart_count	Number of published data marts visible to you
top_data_marts_by_connectivity	Data marts ranked by configured relationship connectivity
getting_started	Only when the catalog is empty: links and next steps for creating the first data mart (see The assistant says there are no data marts)
_instruction	Internal guidance for the assistant on how to summarize the returned catalog

Each top_data_marts_by_connectivity item includes id, title, description, url, relationship_count, reports_count, triggers_count, and updated_at.

Use this tool when the user asks what can be analyzed in the project. It does not return sample values, data freshness, row counts, or any actual data rows.

get_project_context

Returns information about the OWOX project that this MCP connection is authorized for, including the complete admin-maintained project description when one is configured.

Returns:

Field	Description
current_project.id	Project identifier
current_project.title	Project display name
current_project.description	Complete project description, or null when none is configured
current_project.status	Project status
current_project.roles	Your roles in this project
current_project.created_at	Project creation date
project_switching	Instructions for switching to a different project

The assistant should use this tool before its first project-specific operation so it has the project’s business context. You can also use it to confirm which project is active or selected. Call it again after an admin changes the project description to get the latest value.

list_contexts

Lists the connected project’s business contexts. Returns contexts, with id, name, the complete Markdown description, and icon for each context. Missing descriptions are null; icons are a built-in key or a lucide:<name> identifier, or null for the default icon. This tool is read-only and accepts no project override.

For an overview of business goals, use get_project_context → list_contexts → list_data_marts or get_relevant_data_marts_by_prompt with context_ids. For example, ask: “Go through all contexts, read their goals and Data Marts, and produce an overview.”

Context descriptions can contain links to specific Data Marts. The assistant can identify the Data Mart from its OWOX URL, then verify access and field names with get_data_mart_details_by_id. A link does not attach the Data Mart to the context or grant access to it.

MCP instructions tell assistants to follow description links only when needed for the question, ignore self-references and cycles, and reuse details already obtained for the same project, Data Mart, and detail level. They still allow refreshed details or joined-field details when needed. MCP tools return description text without recursively loading linked descriptions; adherence to the instructions depends on the connected AI client.

Context and project configuration

These tools use the project selected for the MCP connection and retain its existing permissions. Context administration requires a project admin; member discovery and reading project settings require at least viewer access.

Tool	Scope	Inputs and behavior
create_context	mcp:write	Required name (1–255 characters); optional description and icon. Returns the saved Context, including its icon, creator and dates.
update_context_metadata	mcp:write	Required context_id and at least one of name, description, or icon. Omitted fields are preserved. null clears the description or restores the default icon; the name cannot be cleared. Returns the saved Context.
get_context_impact	mcp:read	Required context_id. Returns counts of attached Data Marts, storages, destinations, members and provisioning defaults, plus affected member IDs. Requires an admin.
set_context_members	mcp:write	Required context_id and assigned_user_ids. Replaces all assignments; [] removes them. Returns assigned_user_ids and dropped_admin_ids.
delete_context	mcp:write	Required context_id. Use the impact tool first and detach every resource, member and provisioning default. Returns context_id and status: "deleted"; attached Contexts cannot be deleted.
list_project_members	mcp:read	No inputs. Returns members with user_id, email, nullable display_name and avatar_url, role, role_scope, and context_ids. Use these IDs for Context assignments.
get_project_settings	mcp:read	No inputs. Returns the project description, or null when missing.
update_project_description	mcp:write	Required description: 1–10,000 characters, or null to clear it. Requires an admin. Leading and trailing whitespace is trimmed; returns the saved description.

Context names and project descriptions follow the same Unicode length rules as the API. Context icons accept a recommended Data Mart icon key (for example, purchases) or a library identifier such as lucide:megaphone, up to 64 characters. An omitted or null icon on create uses the default. For an update, for example, { "context_id": "…", "icon": "lucide:megaphone" } changes only the icon.

Before assigning members, use list_project_members to identify the intended people by name or email. Admins already have project-wide access, so their IDs are ignored by set_context_members and reported in dropped_admin_ids.

Removed project members are excluded from discovery and cannot be assigned. If member lookup is unavailable, the tool reports an error instead of an empty project. Configuration tools reject unknown input fields, including misspelled optional fields.

Before deletion, get_context_impact reports the attachments that must be removed. Its affected_member_ids lists members whose only Context assignment is this one. With your approval, the assistant can remove assignments through set_context_members. Use set_storage_access or set_destination_access to change a resource’s context_ids. Keep the other Context IDs that still apply. Use set_data_mart_contexts to replace the complete Context list for a Data Mart. Detach user provisioning defaults in the OWOX web app.

Credential management

Manage reusable Credentials in the connected project without sending provider secrets through your AI client. These tools require at least the viewer role and retain the same resource permissions as the OWOX web app. Ownership and sharing determine which Credentials you can see, use, maintain or delete.

Tool	Scope	Inputs and behavior
list_credential_definitions	mcp:read	This tool takes no inputs. It returns provider IDs, names, authentication types, supported consumers and AI support.
list_credentials	mcp:read	This tool takes no inputs. It returns visible Credentials with safe metadata, access settings, validation state and usage. Check can_use before you select one.
get_credential	mcp:read	Supply credential_id. The tool returns safe metadata for one visible Credential.
update_credential	mcp:write	Supply credential_id and at least one metadata, access or AI mapping field. Existing permissions to edit, manage owners and configure sharing apply.
validate_credential	mcp:write	Supply credential_id. You must have edit access. The tool checks the stored Credential with its provider and returns validation_state. It may refresh an OAuth grant.
consent_credential_definition	mcp:write	Supply credential_id. You must have edit access. The tool accepts the current external provider definition after you review the change.
delete_credential	mcp:write	Supply credential_id. You must have delete access. The tool refuses to delete a Credential with active consumers.
start_credential_setup	mcp:write	To create a Credential for a known Storage or Destination, supply a compatible definition_id. To replace secrets or reconnect an account, supply credential_id. Omit both IDs only for an explicit provider-picker request without a known target. Returns setup_id and url.
get_credential_setup_status	mcp:read	Supply setup_id. Optionally, set wait_seconds from 0 to 25. The tool returns pending, completed, cancelled or expired. After completion, it returns the exact credential_id.

To create a Credential or replace its secret, open the URL from start_credential_setup. Sign in with the same OWOX account that connected MCP. Complete the authenticated OWOX form in the connected project. Enter provider secrets only in that form.

The assistant can pass an optional title to prefill the name of a new Credential. You can change this name in the form. If no name is supplied, manual setup uses the provider name. OAuth uses the connected account details when available. Reconnecting an existing Credential keeps its current name.

The setup request belongs to the initiating user and project. It expires after 15 minutes. Its URL contains no secret material. New Credentials created through this flow start unshared. The form opens only when the active project matches the project in the setup link.

The assistant checks the same request with get_credential_setup_status. It can wait up to 25 seconds per call and repeat while the status is pending. Clients do not need background notifications.

Completion means that the form was saved. It does not mean that the provider verified the Credential. Read validation_state or use validate_credential when provider validation is needed. Until cleanup, the completed status remains available if the Credential is deleted or its access changes. Reading or using that Credential still requires current access.

All setup requests are removed after 30 minutes from creation, regardless of status. Completing or cancelling setup does not extend this time. The cleanup task runs every five minutes on instances with SCHEDULER_EXECUTION_ENABLED=true. The page explains when a link has expired or is no longer available and asks you to request a new link. Deleting a setup request does not delete its Credential.

Saving can finish after setup expires or is cancelled. If the page shows a saved Credential ID, share that ID with your assistant. The assistant checks access with get_credential before reusing it. If the ID is unavailable, the assistant uses list_credentials and asks you to confirm a match by provider and title. It starts a new setup only if no suitable Credential is confirmed. The same recovery steps apply after the setup request is removed.

update_credential accepts title, enabled, owner_ids, context_ids, available_for_use, available_for_maintenance, ai_model_mappings and ai_model_mapping_modes. Omitted fields stay unchanged. Owner and Context arrays replace their complete lists. At least one owner must remain.

AI mapping keys are fast, reasoning and embedding. Mapping modes are recommended or override. Provider-specific AI requirements still apply. These tools reject unknown input fields, including secret values, field dictionaries and OAuth tokens.

Responses omit stored provider fields, authentication contracts and raw validation messages. They include the Credential title, which can contain an account email or other identity information. Visible consumers appear in used_by. Hidden consumers contribute only to hidden_consumer_count. Deletion checks every active consumer. Remove bindings in the OWOX web app before retrying a blocked deletion.

Custom connector authoring

You can create and maintain custom connectors through your assistant. This includes creating drafts, testing, publishing and rollback. Every operation uses the connected project. Use list_custom_connectors to find connector_id. Use get_custom_connector to find version numbers.

Tool	Scope	Minimum role	Inputs and behavior
list_custom_connectors	mcp:read	Viewer	This tool takes no inputs. The result contains connectors with metadata and active version numbers. It does not contain manifests.
get_custom_connector	mcp:read	Viewer	Provide connector_id. The result includes metadata, a Connector Builder url and versions. Versions appear oldest first, with status and publication date.
create_custom_connector	mcp:write	Editor	Provide name, title and manifest. Optional inputs are description, logo and doc_url. The tool creates version 1 as a draft. It returns connector_id, name, title and a Connector Builder url.
update_custom_connector	mcp:write	Editor	Provide connector_id and any metadata fields to update. Omitted fields remain unchanged. Use null to clear description, logo or doc_url. The connector name cannot change.
get_custom_connector_version	mcp:read	Editor	Provide connector_id and version. The tool returns the complete draft or published manifest. You must be an editor because manifests can contain credentials.
save_custom_connector_draft	mcp:write	Editor	Provide connector_id and the complete manifest. The tool replaces the current draft, or creates the next draft if none exists. Published versions remain unchanged.
test_custom_connector	mcp:write	Editor	Provide manifest, node and a flat configuration map. For authentication, use a compatible saved credential_id or supply temporary keys in configuration. Optional inputs are max_rows (1–1000, default 25) and max_pages (1–50, default 1). The test makes real upstream API requests without saving. It returns rows, logs, error and a raw sample.
publish_custom_connector	mcp:write	Editor	Provide connector_id. The tool validates the latest draft and publishes it. This version becomes active immediately. The result contains version status, publication date, warnings and a Connector Builder url.
activate_custom_connector_version	mcp:write	Editor	Provide connector_id and a published version. The tool makes that version active. This includes rollback to an earlier published version.
delete_custom_connector	mcp:write	Editor	Provide connector_id. The tool soft-deletes an unused connector and makes its name available for reuse. Deletion fails if any Data Mart references the connector.
get_custom_connector_specification	mcp:read	Viewer	Provide connector_id. Optionally, provide a published version. The tool uses the active version by default. The result contains specification without secret parameter values or OAuth internals.
get_custom_connector_fields	mcp:read	Viewer	Provide connector_id. Optionally, provide a published version. The tool uses the active version by default. The result contains node and field schemas, including primary keys and default fields.

Use the manifest reference to write a connector manifest:

1. If a draft exists, read its latest version before editing. Saving replaces the whole document.
2. Create or save the draft. Drafts can be incomplete.
3. Test the relevant nodes.
4. Review the test result before publishing. Publication validates the full manifest.

Manifest JSON and test-configuration JSON each have a limit of 120 KiB. Live tests have a 20-second timeout and concurrency limits.

The results of create_custom_connector, get_custom_connector and publish_custom_connector include a url. This URL opens the connector in the Connector Builder on your OWOX deployment.

Test results include up to 50 recent log entries plus an omission notice. Each entry has at most 2000 characters. The total limit is 8000 characters, including notices. Truncation markers identify shortened entries. An omission notice gives the number of omitted earlier entries. Rows, raw samples and the test error remain unchanged.

Check logs and sample even when error is null. Empty rows alone do not prove that the test succeeded.

Publishing or activating changes future runs of every Data Mart that follows the active version. You must have edit access to each of these Data Marts. Otherwise, ask a project admin or request edit access. Data Marts pinned to a version keep that version. Publication warnings identify credential configuration that needs attention. Publishing and activating may also update display metadata from the manifest.

If deletion fails because Data Marts reference the connector, reconfigure those Data Marts in the web app before retrying.

Tool metadata uses connector_id, doc_url, active_version_id, active_version and published_at. The nested manifest, specification and fields keep their native connector JSON keys, including camelCase names. MCP metadata responses do not include base64 logos. Logos remain available in the Connector Builder.

Do not put literal secrets in a saved manifest. Declare secret parameters with attributes: ["SECRET"] and use parameter references in the manifest. For tests, you can reuse a compatible saved Credential with credential_id. Omit fields supplied by that Credential from configuration. Use start_credential_setup to create or update a Credential in the browser.

You can also test with temporary keys in configuration and omit credential_id. The test does not create a Credential or save its configuration. This option lets you test a connector before you save provider access.

Manifests, test configuration, sample rows and logs pass through your AI client. The client may send this content to its provider.

OWOX masks recognized credential values in MCP test results, errors and tool-call telemetry. This includes SECRET parameters and values referenced by authentication fields or credential headers such as Authorization and X-API-Key. Telemetry also masks credential defaults, placeholders, options and literal values in recognized credential fields. Public settings, such as pagination tokens, remain visible. Test results can still contain sensitive upstream data.

Data Mart setup, models, and execution

Setup tools can work with visible drafts. Reporting discovery, get_data_mart_details_by_id, query_data_mart, and report tools still require published Data Marts. Use list_setup_data_marts and get_data_mart_setup for setup work. The setup getter requires visibility. It does not grant permission to edit. If a connector specification cannot be read safely, the getter still returns metadata, schema, and access settings. It returns definition: null with definition_read_error. Repair the connector in OWOX before replacing its definition. This is not an empty draft.

All calls use the connected project, current user, and existing OWOX resource permissions. Read tools require mcp:read. Changes and provider queries require mcp:write as well. Most mutations require an editor or admin role. Resource ownership, sharing, and Contexts still control each action. A role or a visible resource alone does not grant maintenance access.

Tools	Purpose and access
list_setup_data_marts, get_data_mart_setup	Find drafts or published Data Marts and inspect saved setup, SQL, schema, and access settings. Viewer role and visibility are sufficient. The response omits connector secrets.
create_data_mart	Create a draft on a Storage that you can use. Requires editor or admin. Keep the returned data_mart_id.
update_data_mart_title, update_data_mart_description, update_data_mart_icon	Change Data Mart metadata. Requires permission to edit.
update_data_mart_definition	Replace the complete source definition. Requires permission to edit. Supports SQL, Table, View, Table Pattern, and Connector definitions.
validate_data_mart, get_data_mart_change_impact	Validate saved source settings or inspect dependencies before a source change or deletion. Both require editor or admin. The shared API permission checks remain in effect.
actualize_data_mart_schema, update_data_mart_schema	Refresh source fields or replace the complete saved schema. Both require permission to edit. Actualization retains the HTTP viewer role requirement. Schema replacement requires editor or admin.
publish_data_mart, delete_data_mart	Publish or delete the selected Data Mart with the existing API permissions. Requires editor or admin. Review impact and authorize deletion first.
set_data_mart_owners, set_data_mart_contexts, set_data_mart_sharing	Replace owner or Context assignments, or set reporting and maintenance sharing. Each retains the existing ownership and sharing checks. Sharing retains the HTTP viewer role requirement.
list_data_mart_relationships	Inspect the visible relationship model. The response omits inaccessible Data Marts.
create_data_mart_relationship, update_data_mart_relationship, delete_data_mart_relationship	Make requested model changes using the existing API permissions. Creating a relationship requires edit access to both Data Marts. Requires editor or admin.
preview_data_mart	Read a bounded sample through the saved source and model. Requires viewer role, Data Mart visibility, and write scope. It can call the warehouse.
list_connectors, get_connector_specification, get_connector_fields	Inspect bundled connector metadata and source requirements. Requires read scope. Use custom connector tools for custom connector versions.
preview_connector_fields, preview_connector_field_options	Check live fields or dynamic options with non-secret parameters and an optional saved Credential. Requires editor or admin and write scope.
run_data_mart, get_data_mart_run, list_data_mart_runs, cancel_data_mart_run	Queue a manual connector run, inspect run status/history, or cancel a supported active run. Starting and cancelling require edit permission and write scope. Reading history requires visibility and read scope.
list_data_mart_run_schedules, create_data_mart_run_schedule, update_data_mart_run_schedule, delete_data_mart_run_schedule	Inspect or manage connector run schedules. Management requires the existing trigger permission and write scope. These tools do not change Report or Data Quality schedules.

Create and publish a Data Mart

1. Select a Storage that you can use. Configure and validate its saved Credential if needed.
2. Call create_data_mart and retain its returned data_mart_id.
3. Call update_data_mart_definition with the complete source definition.
4. Call validate_data_mart and resolve reported errors.
5. Read get_data_mart_setup. Refresh the schema or inspect preview_data_mart when the source is available.
6. Review warnings, intended owners, Contexts, and sharing. Call publish_data_mart when setup is ready.
7. For connectors, inspect list_data_mart_runs for the initial run. Poll get_data_mart_run with its run_id.

Validation and schema updates return safe application diagnostics. Schema updates include up to 50 warning summaries. warning_count includes all warnings. Provider errors can contain connection details, so their full text stays in OWOX. Follow the returned guidance if you need more detail.

An unloaded connector source can need publication and its initial run before schema or preview is available. Connector publication starts an asynchronous initial run. Published status does not prove data readiness or execution success. If no initial run appears, check the Data Mart in OWOX before starting another run. Use the actual run status and source preview to report the result.

Credentials and complete replacements

Use existing compatible Credential IDs. Use start_credential_setup and get_credential_setup_status when authorization must be created or renewed in the browser. Never put raw secrets in a Data Mart definition or connector preview. Use _credential_id in a connector definition. Preserve an existing configuration’s _id and _credential_id when replacing it. The definition save path uses the same checks as HTTP. For older configurations without a reusable Credential binding, the server retains omitted Credential-owned values and legacy references for the same configuration and authentication variant. Selecting a different Credential does not retain the old sign-in.

update_data_mart_definition replaces the complete definition, including its connector configuration list. update_data_mart_schema replaces the complete schema. Owner and Context setters replace complete lists. Preserve fields and assignments that still apply. A supplied relationship join-condition list also replaces that list. Use project member and Context discovery tools to obtain valid IDs. Do not guess IDs.

Destructive changes and execution

Inspect get_data_mart_change_impact before replacing an existing input source or deleting a Data Mart. Review affected Reports, relationships, schedules, and referencing Data Marts with the user. Obtain authorization for destructive source changes and deletion. Deleting a Data Mart deletes its dependent Reports, schedules, and relationships. Warehouse tables remain. Never delete dependencies to bypass another operation’s restriction.

run_data_mart returns status: "queued" and a run_id. It does not wait for completion. Poll get_data_mart_run until should_poll is false, waiting up to 15 seconds between checks. Use error_summary to explain a known failure. If it points to Run History, inspect the details in OWOX. MCP does not return raw provider errors. This flag describes the selected run, which can be one segment of a longer backfill. Do not call run_data_mart again to check progress. Each run can load data and incur usage. Cancellation of a backfill-chain segment stops the active segment and remaining chain.

Backfill segments include backfill.chain_id, segment_index, and segments_total. Use list_data_mart_runs with limit and offset to find later runs with the same chain_id, then poll their run IDs. Inspect the outcomes of all visible segments. Another segment can follow a failed segment. Success of the last segment does not prove that earlier segments succeeded. The source can also finish a chain early. If no later segment is visible and completion is uncertain, check Run History in OWOX. do not report the whole backfill as complete or start a duplicate run. It retains data already loaded and usage already incurred.

Creating a run schedule adds a new schedule. List schedules before changing or deleting a specific trigger_id. Use the intended IANA timezone. Creation defaults to UTC and an active schedule. Cron expressions and timezones must be valid even when a schedule is inactive. Use the separate Report schedule tools for recurring report delivery.

list_data_marts

Lists Data Marts visible to you in the current project. By default, it returns published Data Marts. You can request draft metadata for catalog browsing. Use get_data_mart_setup to inspect a visible draft. Reporting details and queries still require publication.

Input:

Field	Description
context_ids	Optional array of IDs from list_contexts. Matches any selected context. Omit or pass [] for no context filter.
status	Optional: published (default) returns queryable data marts; draft returns draft metadata for catalog browsing only.

Returns an array of data mart objects:

Field	Description
id	Data mart identifier
title	Data mart name
description	Data mart description
url	Link to open the data mart in OWOX Data Marts
status	Current status: PUBLISHED or DRAFT. Response values are uppercase and differ from the lowercase input filter values.
contexts	All attached context IDs and names ([{"id": "...", "name": "..."}]); [] when none.
updated_at	Last update timestamp

Use this tool to discover available data marts before running queries or building reports.

The response also includes project.id and project.title, so the assistant can state which project its discovery results belong to.

An empty context-filtered list does not mean the project is empty. getting_started appears only when you have no accessible published Data Mart anywhere in the connected project. When you see no published data mart, the response also includes getting_started — links and next steps for creating the first one (see The assistant says there are no data marts).

The list reflects your access: it includes only the data marts your project role permits you to see. If a data mart you expect is missing, check your role in that project.

get_relevant_data_marts_by_prompt

Finds the data marts most relevant to a natural-language question, ranked by relevance. Use it to discover which data marts can answer a specific question without listing the whole project.

Input:

Field	Description
context_ids	Optional array of IDs from list_contexts; match any. Omit or pass [] for no context filter.
prompt	Natural-language search prompt
limit	Optional maximum number of results

Returns an array of matching data mart objects:

Field	Description
id	Data mart identifier
title	Data mart name
description	Data mart description
url	Link to open the data mart in OWOX Data Marts
contexts	All attached context IDs and names; [] when none.
relevance_score	How closely the data mart matches your question

The response also includes project.id and project.title.

Only non-draft data marts visible to your project role are returned. An empty result usually means nothing matched the prompt; when you see no published data mart at all, the response also includes getting_started (see The assistant says there are no data marts) so the assistant explains what to do instead of rephrasing the search.

Context filtering happens before search candidate limits and ranking. Unknown, deleted, or other-project context IDs are rejected. Filters never expand your existing Data Mart access. An empty filtered result does not trigger onboarding when accessible published Data Marts exist elsewhere in the project.

get_relevant_reports_by_prompt

Finds existing reports from a natural-language prompt, ranked by relevance. Use it when you refer to a report by name or subject — “open the revenue report”, “rerun the weekly ads export” — and its identifier is not yet known. The report name is matched first, then the names of its data mart and destination.

Input:

Field	Description
prompt	Natural-language search prompt
limit	Optional maximum number of results, default 10

Returns an array of matching report objects:

Field	Description
report_id	Report identifier
title	Report name
data_mart	The report’s data mart — id, title
destination	The destination the report exports to — id, title, type
relevance_score	How closely the report matches your prompt
url	Link that opens the report in OWOX Data Marts

The response also includes project.id and project.title.

A report is returned when both its data mart and destination are visible to you under the project access rules, matching the Data Mart’s Destinations tab. You do not need to own a report to find it; permissions to edit or run it are checked separately. Use get_data_mart_reports when the data mart is already known and you need every report with its full definition.

get_data_mart_details_by_id

Returns field-level metadata for one data mart visible to you in the current project.

The response also includes all attached contexts as IDs and names ([] when none), linking the selected Data Mart back to the business descriptions returned by list_contexts.

Input:

Field	Description
data_mart_id	Data mart identifier returned by list_data_marts or get_relevant_data_marts_by_prompt
detail_level	Optional: native (default) returns only the data mart’s own fields; with_joined_fields additionally returns joined fields when the question truly requires them

Returns:

Field	Description
id	Data mart identifier
name	Data mart name
url	Link to open the data mart in OWOX Data Marts
description	Data mart description
fields	The data mart’s own (native) output fields with query name, presentation displayName, types, descriptions, and business names when available. A field OWOX already computes for you also carries a usage note saying so; a calculated field whose number a join can distort carries a caveat there to pass on with the value
joined_fields_included	Whether joined fields were requested and evaluated. When false, joined_fields was intentionally omitted rather than evaluated as empty.
joined_fields	Fields contributed by blended/joined data marts when requested, each with exact query name, presentation displayName, source data mart, type, and allowed aggregations
joins	How each joined Data Mart relates to this one, one entry per join path: aliasPath, the source and target Data Mart titles, joinConditions (the field pairs rows are matched on), and description when set — the override for this join path, otherwise the relationship’s own description
operators_by_category	For each field-type category present in the data mart (number/string/date/time/boolean/other), the query_data_mart filter/slice operators its fields accept

Use this tool when you need to understand the fields available in a specific data mart. It returns native fields by default; request detail_level=with_joined_fields before concluding that the native schema cannot answer a question or after a field_not_found error. Like joined_fields, joins is returned only with with_joined_fields and stays empty otherwise. A field’s allowedAggregations and its category’s entry in operators_by_category tell the assistant which aggregations and operators the field supports. The assistant can build queries without trial and error. An empty allowedAggregations on a calculated field whose formula already aggregates means the value is already computed, not that the field is unusable — select it by name and read its usage note. It does not return sample values, data freshness, owners, or actual data rows. To learn how joined/blended fields are set up, see Joinable Data Marts.

query_data_mart (requires mcp:read and mcp:write)

Runs a query against one data mart and returns its data rows, plus server-side totals computed over all matching rows. Unlike the tools above, this reads the data itself — each call runs against your warehouse and costs credits, and every call is recorded in Run History (the query definition and executed SQL only — never row values).

Input:

Field	Description
data_mart_id	Data mart to query
fields	Exact field names to return, copied from get_data_mart_details_by_id. Must include every field used in aggregations, date_buckets, and sort. Reference blended fields by their qualified <alias>__<field> name
aggregations	Aggregations over a field: SUM, COUNT, COUNT_DISTINCT, AVG, MIN, MAX, and percentiles P25/P50/P75/P95. Which of these a field allows depends on its type and per-field settings — use the allowedAggregations returned by get_data_mart_details_by_id. Group-by is implied by the non-aggregated fields
date_buckets	Bucket a date/timestamp field by DAY/WEEK/MONTH/QUARTER/YEAR. Only date-category fields can be bucketed; time_zone applies only to types with a time component (not pure DATE)
sort	Order the result rows: each rule is { field, direction } with direction asc or desc; rules apply in order (the first is the primary key). Each sorted field must also appear in fields
slices	Pre-join filters — narrow a joined data mart before it is blended in (joined fields only)
filters	Post-join filters on the blended result. Row-level predicates applied to raw values before any aggregation — there is no HAVING, so they cannot threshold an aggregated total. Which operators a field accepts depends on its type — see operators_by_category from get_data_mart_details_by_id; several filters combine with AND. in/not_in take an array of values (match any of / none of). The negative operators neq, not_contains, not_regex, and not_in are NULL-inclusive — they keep rows where the field is NULL, treating a missing value as “not equal to”; add an is_not_blank filter on the same field to exclude NULLs
limit	Maximum rows to return (1–1000, default 20). There is no pagination

For a “how many” question, use COUNT or COUNT_DISTINCT (when the user means unique entities) rather than returning raw rows and counting them in the assistant. Include only the dimensions needed for the requested breakdown.

When the data mart already defines the quantity being asked for as a calculated field that aggregates — a ROAS written as SUM(revenue) / NULLIF(SUM(adCost), 0), say — list that field in fields instead of pulling its inputs and dividing them in the reply. OWOX then computes it in the warehouse at the grain the question asks for, over every matching row rather than only the rows the limit let through.

Returns:

Field	Description
columns	Business-friendly headers matching the header row in rows
column_metadata	Exact technical query name plus business-friendly display_name, type, and description when available
rows	The data rows, as a compact header-once table
returned_rows	Number of rows in the response
truncated	true if not all matching rows were returned — narrow the query or raise limit
truncation	Present only when truncated; reasons is row_limit, payload_byte_cap, or both
totals	Server-side totals over all matching rows, ignoring the row limit
data_last_updated	When the source tables behind this result last changed in the warehouse — see below
source	The id, title, and OWOX link of the Data Mart that supplied the response
calculation_origin	Marks rows as taken from OWOX, and totals and data_last_updated as produced by OWOX when available

Only data marts and fields your project role permits are queryable. For more on how aggregations and totals are computed, see Report Aggregations and Totals; for why a given aggregation may be rejected on a field, see Report Output Controls.

When presenting results, the assistant must name the source Data Mart. It must distinguish OWOX-provided values from any arithmetic it performs itself. If truncated is true, it must explicitly tell the user that returned rows are incomplete; server-provided totals remain valid for all matching rows, but any number calculated from returned rows can be incomplete.

Data last updated

data_last_updated answers “how current is what I am looking at?”. Each query measures it live, in the same call that reads the data. OWOX never caches this value and never bills it separately — the call’s own credits cover it. A non-blended query (no joined fields) also saves the measurement as the Data Mart’s last-known value. The same value appears across the OWOX UI — see Data Last Updated.

Field	Description
data_last_updated_at	ISO-8601 UTC time when the newest source table last changed, or null when the warehouse does not report it
computed_at	When this measurement was taken
coverage	complete, partial (some sources unreadable — the real time can only be more recent), or unavailable (nothing could be determined)
sources	Per-table detail, each with its own time and an optional note explaining a gap

Read the value precisely. It is a storage timestamp, not a statement about the data’s content:

• It says when something last wrote to the source tables. A backfill can rewrite a table today with figures from 2021, so “updated today” does not mean “covers today”. For this reason the field is data last updated, not freshness.
• null means unknown — neither fresh nor stale. The assistant should say OWOX could not determine it, without implying either.
• With coverage: "partial", treat the timestamp as “at least as recent as” and say the picture is incomplete.
• The assistant is asked to present the timestamp in a business-friendly form (e.g. “August 4, 2026 at 09:46 UTC”) — converted to the user’s time zone when the conversation establishes one, otherwise in UTC with the zone named — never as a raw ISO-8601 string. The machine-readable ISO-8601 value stays in the structured response.

Coverage is best effort per storage. Google BigQuery, AWS Redshift, AWS Athena, Snowflake, and Databricks are supported. OWOX resolves views and SQL data marts through to their underlying base tables. Sharded and wildcard table sets collapse into one entry. Other storages currently report unavailable. sources deliberately omits views: a view’s own modification time reflects a change to its definition, not to any data. Redshift metadata can lag real writes by up to ~5 minutes. Older Redshift releases do not report modification times at all. Athena is exact for Iceberg tables; Hive tables report null with a note, because their catalog stores no data-change time. See Data Last Updated for storage-specific caveats.

Storage management

These tools manage Storage connections in the connected project. They enforce resource permissions for reading, use, editing, ownership, and sharing. They accept saved Credential IDs. Enter provider secrets only in the OWOX Credential form.

list_storages, get_storage, create_storage, and update_storage return url, a direct link to the Storage in the OWOX Data Marts web UI.

Tool	Inputs and behavior
list_storages	Optional storage_type, owner_id, and owner_filter. Returns visible Storage IDs, names, types, and timestamps. Use get_storage for details.
get_storage	Supply storage_id. Returns safe configuration, Credential state, owners, Contexts, and sharing settings.
create_storage	Supply storage_type. An optional title names the Storage. Returns an unconfigured Storage with use sharing enabled and maintenance sharing disabled.
update_storage	Supply storage_id and the changed title, configuration, or credential_id. Omitted fields stay unchanged. The Storage type cannot change.
set_storage_access	Supply storage_id and the changed owner_ids, context_ids, available_for_use, or available_for_maintenance. Supplied lists replace their complete lists.
validate_storage_access	Supply storage_id. Checks the saved configuration and Credential. Returns a safe validation state and the next step when setup is incomplete.
list_storage_resources	Supply storage_id and level: namespaces or resources. The resources level requires namespace_id. Optional resource_type filters tables, views, or table patterns. Resource browsing currently supports BigQuery.
delete_storage	Supply storage_id. Deletion fails while Data Marts reference the Storage. It preserves the saved Credential and warehouse data.

To configure a Storage:

1. Call list_credential_definitions and match storage_types and the required authentication method to the Storage.
2. Select a usable saved Credential. To create one, pass the matching definition_id to start_credential_setup and complete browser setup.
3. Call create_storage with the required type.
4. Keep the returned storage_id.
5. Call update_storage with that ID, the provider configuration, and credential_id.
6. Call validate_storage_access to check the connection.
7. Use set_storage_access to change owners, Contexts, or sharing as requested.

Legacy BigQuery Storages cannot be created or deleted through these tools. Their titles and BigQuery project IDs stay unchanged when you update them. For access changes, use list_project_members and list_contexts to find valid IDs. Keep every owner or Context that the user still needs in a replacement list.

Destination management

Use list_destinations and get_destination to identify the intended Destination. Use add_destination to create a Destination.

Tool	Inputs and behavior
get_destination	Supply destination_id. Returns safe settings, recipients, Drive folder, Credential state, owners, and Contexts.
update_destination	Supply destination_id and the changed title, emails, drive_folder_url, or credential_id. Field support depends on the Destination type.
set_destination_access	Supply destination_id and the changed owners, Contexts, or sharing flags. Input names and list replacement rules match set_storage_access.
get_destination_impact	Supply destination_id. Returns the dependent Report and Data Mart counts. This operation requires permission to delete the Destination.
delete_destination	Supply destination_id. Deletion fails while Reports reference the Destination. It preserves saved Credentials and external documents.
rotate_destination_secret_key	Supply destination_id. Rotates the Looker Studio key. Returns the Destination URL, never the key.

get_destination and update_destination return destination_id, connected_google_account, and created_at. list_destinations returns id, connectedGoogleAccount, and createdAt.

To create a Credential, use list_credential_definitions to match destination_types and the required authentication method. Pass the matching definition_id to start_credential_setup. Use google-sheets-oauth for Google Sheets sign-in, google-service-account for a service-account key, or google-chat-webhook for Google Chat webhook delivery.

For Google Sheets, drive_folder_url selects the folder for newly created spreadsheets. Pass null to update_destination to clear the folder. Changing the Google account can clear an omitted folder setting.

For service accounts, use a Shared Drive folder. If folder access fails, grant the service account permission to create files there.

For Google sign-in, both the connected account and OWOX must already have access to the folder. Supplying its URL does not grant access. If folder access fails, select the folder through the OWOX Picker with the connected Google account. OAuth folder access errors can occur when OWOX creates a spreadsheet.

Use emails for email, Slack, Teams, or Google Chat channel-email delivery. Use credential_id to select a saved Credential for Google Sheets or a webhook Credential for Google Chat. For Google Chat, emails replaces webhook delivery, and credential_id replaces saved recipients with webhook delivery. Do not combine these fields. Never send a secret webhook URL through MCP. Existing Excel Destinations can be managed, but add_destination does not create them.

Before key rotation, explain that the old Looker Studio key will stop working. The user must open the returned Destination URL to copy the new key into Looker Studio.

Creation and key rotation

Repeating a successful creation creates another Storage or Destination. Each key-rotation call replaces the current key. If a response is lost, check the result in OWOX before repeating the operation. The initial Google Sheets browser setup call creates a Credential setup request, not a Destination.

list_destinations

Lists the destinations in the current project — such as Google Sheets, Looker Studio, or messaging destinations — so the assistant knows where a report could be sent.

Optional destination_type, owner_id, and owner_filter inputs narrow the list. The result includes the fields below, current owners, Contexts, sharing settings, and safe Credential state.

Returns an array of destination objects:

Field	Description
id	Destination identifier
url	Link to open this destination in OWOX
name	Destination name
type	Destination type (for example google_sheets, looker_studio, slack, email, teams, google_chat)
owner	Email of the member who created the Destination, or null when unavailable
connectedGoogleAccount	For Google Sheets destinations, the Google account that completed OAuth consent
createdAt	Destination creation timestamp

The list includes only destinations that your project role permits you to use. When add_destination creates a destination, use its returned destination_id to identify the result. Do not select the newest destination by createdAt. To add or manage destinations, see Destination Management.

add_destination (requires mcp:write)

Starts or completes setup for a report-delivery destination. The exact flow depends on destination_type.

Input:

Field	Description
destination_type	Destination type to connect or create: google_sheets, looker_studio, email, slack, teams, or google_chat
title	Supply an optional destination name. For Google Sheets browser setup, keep this title for the follow-up add_destination call. The browser form title names the Credential.
emails	Supply target email addresses or delivery addresses. This field is required for email, slack, teams and Google Chat delivery through channel email. Do not combine it with credential_id.
credential_id	Select a compatible saved Credential for google_sheets or google_chat webhook delivery. You must have permission to use it. Get its ID from list_credentials or completed browser setup.
drive_folder_url	Optional Google Drive folder URL for a Google Sheets Destination. Requires folder access for the connected account and, with Google sign-in, for OWOX. Keep it for creation after setup.

Returns:

Field	Description
authorization_url	For google_sheets without credential_id, open this link to create a Google Sheets Credential in OWOX.
setup_id	Use this ID with get_credential_setup_status to identify the exact saved Credential. The tool returns it when browser setup is required.
destination_id	The tool returns the new destination ID when it creates a destination. This includes google_sheets with credential_id. The initial browser setup call does not return this ID.
destination_url	Open the created destination in OWOX. The tool returns this URL only when it creates a destination.
instructions	Human-readable next steps for finishing setup or using the new destination

For google_sheets or google_chat, supply credential_id to use a compatible saved Credential. You must have permission to use it. For Google Chat, this selects webhook delivery. The tool creates the destination directly and returns destination_id. New destinations start unshared. Never send Credential values or secret webhook URLs through MCP or chat.

For google_sheets without credential_id, the tool starts the same Credential setup flow as start_credential_setup. It returns authorization_url and setup_id. This call does not create a destination.

1. Open authorization_url in the browser.
2. Sign in to OWOX with the same account that connected MCP. You must be a member of this project.
3. Complete the Google Sheets Credential form. Its title names the Credential.
4. Call get_credential_setup_status with setup_id. If the status is pending, repeat the call as needed.
5. If the status is completed, call add_destination again with destination_type: "google_sheets", the exact credential_id, and the intended destination title.
6. Use the returned destination_id for reports.

The follow-up call creates the destination. Its title names the destination, which can differ from the Credential title. New Credentials and destinations start unshared. Other project members need permission to use them. If setup is cancelled, expired or missing, first recover the saved Credential as described in Credential management.

For email, slack and teams, the tool creates the destination directly and returns destination_id. For google_chat without credential_id, the tool uses channel-email delivery and requires emails.

For looker_studio, the tool creates the destination directly and returns destination_id. The tool never sends connector credentials or secret keys through MCP or chat. Open the destination in OWOX Data Marts to copy those credentials. The returned instructions include the Data Studio destination guide with the full walkthrough.

get_data_mart_reports

Lists the reports tied to a data mart, including each report’s destination, what it exports, the spreadsheet it writes to (Google Sheets), its run schedules (a report can have any number of schedule triggers), and its last run status.

Input:

Field	Description
data_mart_id	Data mart identifier

Returns an array of report objects:

Field	Description
report_id	Report identifier
report_url	Link to the report’s Data Mart reports page in OWOX
data_mart_id	Data mart identifier
name	Report name
destination_id	Destination the report exports to
destination_url	Link to the destination in OWOX
destination_type	Destination type (for example google_sheets)
owner	The user who created the report
created_by_current_user	true when the connected user created the report
created_at	Creation timestamp
fields	Column names the report exports, or ["*"] for every field; [] is a metrics-only report that exports no dimension column, only its Unique Count metric(s)
unique_count_sources	Unique Count metrics the report carries — unique_count for its own data mart, <source>__unique_count for joined sources. Set in the OWOX UI; update_report keeps them
filters, slices	Row filters and pre-join filters applied on every run, in the same vocabulary add_report and update_report accept
ui_only_filters	Present only when the report also applies rules created in the OWOX UI that the assistant cannot express — post-aggregation constraints, regex, calendar presets such as “today”. update_report keeps them untouched; change or remove them in the OWOX UI
aggregations	Aggregations applied on every run, in add_report vocabulary (including the report-only STRING_AGG and ANY_VALUE)
date_buckets	Date buckets applied on every run
sort	Sort order of the exported rows
limit	Max rows per run, or null when uncapped
spreadsheet_id	Google Sheets only. Spreadsheet the report writes to — pass it as spreadsheet_id to add_report to put a related export into the same document
sheet_url	Google Sheets only. Link to the report’s sheet
schedules	Array of run schedules — trigger_id, cron_expression, time_zone, is_active, next_run_at, last_run_at
last_run_at	Timestamp of the most recent run
last_run_status	Status of the most recent run

Use this tool before creating a report, to find one that already exports what you asked for, and before scheduling or changing a report’s cadence, to see what already exists.

run_report (requires mcp:write)

Starts an existing report run and delivers fresh data to its push destination. Use it for a later rerun, or to retry delivery when add_report returned initial_run.status: failed_to_queue. Do not call it for the initial run when add_report already returned a queued run_id. This returns immediately with identifiers for the run; it does not wait for completion. Each call starts a new billed Report Run, so do not call it again for the same report while the previous run is still running or pending.

Input:

Field	Description
report_id	Report to run, from get_data_mart_reports

Returns:

Field	Description
report_id	Report identifier
run_id	Run identifier to pass to get_report_run_status

Use this tool for push destinations such as Google Sheets, Email, Slack, Microsoft Teams, and Google Chat. Pull-based destinations such as Looker Studio cannot be run through run_report.

get_report_run_status

Checks the current status of a report run started with run_report or queued automatically by add_report.

Input:

Field	Description
report_id	Report identifier
run_id	Run identifier returned by run_report

Returns:

Field	Description
report_id	Report identifier
run_id	Run identifier
status	Normalized status: running, success, failed, cancelled, interrupted, or restricted
should_poll	true when the assistant should keep checking this run; false when polling should stop
stop_reason	queued_too_long, running_too_long, or null
queued_at	Timestamp when the run was queued, if available
started_at	Timestamp when execution started, if available
raw_status	Backend run status
error	Error message for failed runs, otherwise null
message	Polling guidance for the assistant, including when a run is taking longer than usual or may be stuck; null when the run has reached a terminal status

Report runs can take several minutes. While should_poll is true, the assistant should call get_report_run_status again, ideally waiting about 15 seconds between checks if the client supports waiting.

list_report_run_schedules

Lists every scheduled report-run trigger in the current project that you can see, in a single response.

Returns an array of schedule objects:

Field	Description
trigger_id	Schedule identifier — pass to update_report_run_schedule or delete_report_run_schedule
report	The report this schedule belongs to (id, title, url)
data_mart	The data mart the report is built on (id, title, url)
schedules_url	Link to the report schedules page in OWOX
cron_expression	Schedule in 5-field cron syntax
time_zone	IANA timezone the cron expression is evaluated in
is_active	Whether the schedule is currently enabled
next_run_at	Next scheduled run, if any
last_run_at	Last run, if any
can_edit	Whether you can update this schedule
can_delete	Whether you can delete this schedule

Use this tool to find a schedule’s trigger_id before updating or deleting it. Creating a new schedule (create_report_run_schedule) never replaces an existing one — a report can have several. These schedules are the same report triggers you can manage in the UI — see Report Triggers.

create_report_run_schedule (requires mcp:read and mcp:write)

Adds a new recurring run schedule to an existing report. The assistant translates natural language (for example “every Monday at 9am”) into a standard 5-field cron expression before calling this tool.

Input:

Field	Description
report_id	Report to attach the schedule to
cron_expression	5-field cron expression
time_zone	Optional IANA timezone (for example Europe/Kyiv); defaults to UTC if not specified
is_active	Optional; defaults to true

Returns: trigger_id, report_id, cron_expression, time_zone, is_active, next_run_at.

This always creates an additional schedule — it never replaces or updates an existing one. To change an existing schedule, use update_report_run_schedule instead.

update_report_run_schedule (requires mcp:read and mcp:write)

Updates one existing schedule identified by trigger_id (from list_report_run_schedules).

Input:

Field	Description
trigger_id	Schedule to update
cron_expression	New 5-field cron expression
time_zone	Optional; omit to keep the schedule’s current timezone
is_active	Optional; omit to keep the schedule’s current active state

Returns: trigger_id, report_id, cron_expression, time_zone, is_active, next_run_at.

This changes the schedule’s cadence in place — it does not change which report it belongs to and does not create another schedule.

delete_report_run_schedule (requires mcp:read and mcp:write)

Removes a single schedule identified by trigger_id. This is destructive and cannot be undone from the assistant.

Input:

Field	Description
trigger_id	Schedule to remove

Returns: trigger_id, report_id, and schedule: null to confirm removal. Only that one schedule is removed — the report and any other schedules it has are left intact.

add_report (requires mcp:write)

Creates a report that exports a data mart to an existing destination (see list_destinations). This is how the assistant exports, saves, or delivers OWOX data — it does not copy query rows into files or documents of its own. For push destinations, it also queues the first run by default so the destination is populated immediately. Set run_immediately to false only when the user explicitly wants configuration without delivery, such as before creating a schedule.

One report per request: when you ask to change a report that already exists — add a filter, sort it differently, rename it — the assistant updates that report with update_report instead of creating another one. To keep a conversation from piling up duplicates, add_report refuses a report whose fields duplicate one you already created on the same data mart and destination: it returns error_code: similar_report_exists together with the existing report’s definition, and the assistant updates that report instead. If you really want a second, separate report, say so — the assistant then passes allow_similar: true.

• Google Sheets: a new Google Sheet is created automatically and linked to the report. The initial run then writes data into it by default. The file and its sheet both take the report’s name. Unlike every other tool, this path reaches outside OWOX: it creates a file in Google Drive and attempts to share it with you. When you ask for several related exports, the assistant passes the first report’s spreadsheet_id to the next add_report calls, so each report becomes a separate sheet of the same document instead of a separate file; that sheet is named after its report too. See Google Sheets destination for how to set the destination up.
• Looker Studio: the report is created with default settings (data cache lifetime of 5 minutes) — the tool accepts no Looker-Studio-specific parameters, and no name (Looker Studio reports carry no name). Each data mart + destination pair can have exactly one Looker Studio report; creating a second one returns an error instead of a duplicate. Creating the report only makes the data mart available to the destination: data appears in a dashboard after you connect Looker Studio to OWOX with the destination’s JSON Config (it contains a secret key, so it is never sent through the assistant). The response includes instructions and a setup_guide_url so the assistant can walk you through it; the full guide is Data Studio destination. If the project has no Looker Studio destination yet, the assistant can create one with add_destination first.
• Email, Slack, Microsoft Teams, Google Chat: the report carries the message subject and body; the recipients or channels are configured on the destination itself, not on the report. The default initial run sends the rendered message immediately. The send condition is always the default (“Send always”) — change it in the OWOX Data Marts UI if you need a conditional report.

Input:

Field	Description
data_mart_id	Data mart to export
destination_id	The destination to export to (from list_destinations)
fields	Exact column names to include, or ["*"] for every field
filters	Optional. Row filters applied on every report run — same shape and operator vocabulary as query_data_mart’s filters, so the assistant can create a report that exports exactly the filtered result you were looking at. A filter may reference a field that is not in fields. Omit to export all rows
slices	Optional. Pre-join filters that narrow a joined data mart before blending — same as query_data_mart’s slices. Blended data marts only
aggregations	Optional. Aggregations applied on every run — same as query_data_mart’s aggregations, plus the report-only STRING_AGG and ANY_VALUE. Each aggregated field must also appear in fields; other fields become group-by dimensions
date_buckets	Optional. Bucket a date/timestamp field by DAY/WEEK/MONTH/QUARTER/YEAR — same as query_data_mart’s date_buckets. Each bucketed field must also appear in fields
sort	Optional. Order of the exported rows — same as query_data_mart’s sort
limit	Optional. Max rows each run exports; omit for no cap (the interactive query limit is deliberately NOT carried over)
name	Report name — also the new sheet’s title (Google Sheets) and the default message subject (email family). Required for those destination types; not accepted for Looker Studio
message	Message settings — required for email, Slack, Teams, and Google Chat destinations, rejected for other types
message.subject	Optional message subject or heading. Defaults to the report name
message.body	Message body template. Supports the {{table}} placeholder, which renders the report’s result table
run_immediately	Optional. Defaults to true for push destinations, which starts one billed Report Run and delivers data. Set false for configuration-only creation. Looker Studio is pull-based: omit this field or set it to false; true is rejected
spreadsheet_id	Optional, Google Sheets only. Add the report as a new sheet of this existing spreadsheet (from an earlier add_report result or get_data_mart_reports) instead of creating a new file. The destination’s connected Google account needs edit access, a sheet with the report’s name must not exist yet, and the spreadsheet must be shared with you — one confirmed not to be is refused
allow_similar	Optional. Create the report even though you already have one exporting the same fields from this data mart to this destination. Without it, such a call returns error_code: similar_report_exists

Returns:

Field	Description
report_id	Report identifier
destination_type	Type of the destination the report was created for
report_url	Link to the report in OWOX Data Marts
spreadsheet_id	Google Sheets only. Spreadsheet the report writes to — reuse it to add related exports as sheets of the same document
sheet_url	Google Sheets only. Link to the report’s sheet
owner	The user who created the report
status	created
initial_run	Outcome of the first run: queued, not_requested, not_applicable, or failed_to_queue. The report exists for every outcome
initial_run.run_id	Present for queued; pass it with report_id to get_report_run_status and do not call run_report again for this initial run
initial_run.should_poll	true only for queued; poll until the status tool returns should_poll: false
placed_in_root	Google Sheets only, new files only. true if the configured Drive folder could not be used, so the sheet was created in the Drive root
shared_with_requester	Google Sheets only. New file: false if the sheet could not be shared with you. Existing spreadsheet: false if your access to it could not be confirmed (it is never granted). Either way, opening the link may require requesting access
instructions	Looker Studio only. What has to happen before dashboard data flows — the assistant relays this to you
setup_guide_url	Looker Studio only. Link to the step-by-step Looker Studio connection guide

update_report (requires mcp:write)

Updates an existing report: renames it, replaces which data mart fields it exports, replaces its output controls (filters/slices, aggregations, date buckets, sort, limit — same vocabulary as query_data_mart), and/or — for reports with an email, Slack, Teams, or Google Chat destination — changes the message subject or body. Anything not provided stays unchanged — the destination, owners, schedules, and send condition are preserved as-is. This is the tool the assistant uses when you ask to change a report it created earlier in the conversation.

By default, a Google Sheets report is run again after an update that actually changed what it exports, so the sheet reflects the new definition; a name-only or message-only change, or re-sending the same controls, does not trigger a run. Email, Slack, Microsoft Teams, and Google Chat reports are not re-sent by an update — a run would deliver the message to every recipient or channel — unless you explicitly ask to send it now. The response returns the report as it is after the update.

Input:

Field	Description
report_id	Report to update (from get_data_mart_reports)
fields	Optional. Replacement column selection, or ["*"] for every field
filters	Optional. Replacement row filters (same vocabulary as query_data_mart’s filters). Replaces only the current row filters the assistant can express — stored slices and ui_only_filters are untouched; [] removes every expressible row filter
slices	Optional. Replacement pre-join filters (blended data marts only). Replaces only the current slices the assistant can express — stored row filters and ui_only_filters are untouched; [] removes every expressible slice
aggregations	Optional. Replacement aggregations (including the report-only STRING_AGG and ANY_VALUE); replaces the whole list, so copy the ones to keep from get_data_mart_reports; [] removes them
date_buckets	Optional. Replacement date buckets; [] removes them
sort	Optional. Replacement sort order; [] removes it
limit	Optional. New max rows per run; null removes the cap
name	Optional. New report name
message	Optional. Message changes — only for reports with an email-family destination, rejected for other types
message.subject	Optional. New message subject or heading
message.body	Optional. New message body template (supports {{table}}). Replaces the current body; if the report used an insight template, it switches to this custom message
run_immediately	Optional. Omit for the default (re-run a Google Sheets report when the export changed; no run for a name-only or message-only change; email-family reports are never re-sent by default). false updates a Google Sheets report without refreshing it; true re-delivers, including re-sending an email-family report. Looker Studio is pull-based: true is rejected

At least one change parameter must be provided (and message, when present, needs subject and/or body); run_immediately alone is not a change.

Returns:

Field	Description
report_id	Report identifier
status	updated
destination_type	Type of the report’s destination
name	Report name after the update
fields, filters, slices, aggregations, date_buckets, sort, limit	The report’s definition after the update — the same shape get_data_mart_reports returns
spreadsheet_id, sheet_url	Google Sheets only. The spreadsheet and sheet the report writes to
run	Outcome of the refresh run: queued (with run_id to poll), not_requested, not_applicable, or failed_to_queue. The update is saved for every outcome

delete_report (requires mcp:write)

Deletes a report. The report stops running and disappears from the project; the underlying data mart, destination, and any already-exported documents are not affected. This cannot be undone, so your assistant asks for confirmation before calling it.

Input:

Field	Description
report_id	Report to delete (from get_data_mart_reports)

Returns:

Field	Description
report_id	Report identifier
status	deleted

What costs credits

Most of what you ask costs nothing. These actions consume credits:

• query_data_mart — reads actual data rows. Each successful call counts as one Report Run, billed as an MCP Query Run.
• run_report — starts a Report Run that delivers data to a destination.
• add_report with its default initial run — creating the report is free, but the automatically queued run consumes one Report Run. Set run_immediately: false for configuration-only creation without that run.

Everything else is free. Context and project configuration, including member discovery and assignments, does not consume credits. Listing data marts, inspecting fields, browsing destinations, reading reports and schedules, and checking run status only read metadata. Creating a destination, report, or schedule is also free; add_report itself is free when run_immediately is false or the destination is pull-based. You pay when the report runs, not when you set it up.

Four things to expect:

• Cost does not depend on size. One call costs the same whether it returns 20 rows or 1,000. Ask one broad question rather than several narrow ones.
• One question can cost several credits. The assistant may run several queries to answer you — for example, one per month you asked about. Ask it to plan the queries first if you want to keep the count down.
• Failed queries are free. If a query fails, times out, or you cancel it, you pay nothing. A wrong guess about a field name costs nothing either.
• Running out of credits blocks queries only. The metadata tools keep working, so the assistant can still explore your catalog.

How to use it: example prompts

Once the OWOX server is connected, just ask your assistant in plain language. You do not need to name the tools — the assistant calls them for you. Prompts marked (costs credits) read or deliver actual data — see What costs credits. Try prompts like:

• “Which OWOX project am I connected to, and what is my role in it?”
• “What data is available in this project, and what should I ask next?”
• “List all the data marts in my project.”
• “Which of my data marts were updated most recently?”
• “Do I have any data marts about Facebook Ads? Show their descriptions.”
• “What fields are available in the Facebook Ads data mart?”
• “Give me a one-line summary of each data mart and what it is for.”
• “What’s the total revenue by month in the Sales data mart?” (costs credits)
• “Show the top campaigns by spend in the Ads data mart.” (costs credits)
• “Which destinations can I send a report to?”
• “Connect a Google Sheets destination for my account.”
• “Create an email destination for analytics-alerts@example.com.”
• “What reports and schedules already exist for the Sales data mart?”
• “Run the Weekly Ads Report now and tell me when it finishes.” (costs credits)
• “Export the Ads data mart to a new Google Sheet called ‘Weekly Ads Report’ and tell me when the initial run finishes.” (costs credits)
• “Add a filter to that report so it only includes paid channels.” (costs credits; the report is updated and refreshed, not duplicated)
• “Export the ad spend by source into the same spreadsheet as a second sheet.” (costs credits)
• “Create a Looker Studio report from the Sales data mart with all fields.”
• “Send the daily revenue table to the Alerts Slack destination with the message ‘Yesterday’s numbers’.” (costs credits; sends immediately)
• “Rename that report to ‘Q3 Ads Report’ and keep only the campaign and spend fields.”
• “Change the subject of the daily Slack report to ‘Morning numbers’.”
• “Schedule that report to run every Monday at 9am New York time.”
• “Turn off the schedule you just created.”
• “Delete the old ‘Test export’ report from the Sales data mart.”

What these tools can and cannot do: They let the assistant discover your project, summarize the published data mart catalog, inspect data mart metadata, list destinations, list reports and schedules, and check report-run status. With query_data_mart, the assistant can run a bounded structured query and read the resulting data rows and totals; this is billable and recorded in Run History. With your confirmation, the assistant can also create destinations (add_destination), create a report for a Google Sheets, Looker Studio, email, Slack, Microsoft Teams, or Google Chat destination — optionally with the same filters, slices, aggregations, date buckets, and sort as a query_data_mart call, so the export matches the numbers you saw (add_report). New push-destination reports run once by default and return a run_id to poll; run_immediately: false creates configuration only. Related Google Sheets exports can share one spreadsheet as separate sheets. The assistant can also rename a report, change which fields it exports, replace its output controls, or edit the message of email-family reports (update_report) — it does this, rather than creating a second report, when you ask to change one that exists — delete a report (delete_report), create, update, or delete report-run schedules, and start a later manual run for supported push-destination reports (run_report). Editors can also create, configure, validate, share, and delete Storages. Destination management includes settings, ownership, sharing, deletion, and Looker Studio key rotation. These operations enforce resource permissions. Editors can create, test, publish, update and delete custom connectors, and activate earlier published versions. Authorized users can create and maintain Data Marts through the setup tools. query_data_mart uses structured fields and controls. SQL source definitions use update_data_mart_definition and the existing validation and preview workflow. The tools cannot change project settings other than the description, retrieve destination secret keys, or run pull-based Looker Studio reports through run_report.

What is shared with your AI provider: Tool inputs and results can reach the AI provider behind your client, such as Anthropic or OpenAI. These include project and data mart metadata, report and schedule metadata, report-run status, and your project roles. Data Mart setup can also expose SQL, schemas, non-secret connector settings, ownership, and sharing. Preview results include source data rows. Storage tools also return configuration, such as warehouse hosts, project IDs, accounts, and workgroups, plus discovered resource names. Storage and Destination details include owners, Contexts, and sharing settings. Destination details can include existing recipient addresses for email, Slack, Microsoft Teams, and Google Chat, plus Drive folder URLs and connected account identities. Addresses that you supply when you create or update a Destination also pass through the client.

When the assistant runs query_data_mart, the resulting data rows and totals are sent to that provider. This includes only data you are permitted to query. Custom connector authoring can also send complete manifests, test configuration, upstream sample rows, and logs. Connect OWOX only to clients your organization permits to receive this information.

Troubleshooting

A tool reports Structured content does not match the tool's output schema

Your client may be validating a response against a tool schema cached before a server update. Refresh the server’s tool list or reconnect the MCP server (in Claude Code, use /mcp). Then retry the tool call.

Requests return 401 Unauthorized

The MCP server rejects a request with 401 in these cases. Your AI client may surface these as a generic “couldn’t connect” or “authorization expired” message rather than the exact text below:

Message	Cause	Fix
Missing MCP bearer token	No Authorization: Bearer header was sent.	Re-run authorization so the client obtains a token. A GET /mcp without a token (a client probe) is expected and harmless.
Invalid MCP bearer token	The token is expired, revoked, or invalid.	Disconnect and reconnect the MCP server to obtain a fresh token.
Invalid MCP resource	The token was issued for a different MCP server URL than this request.	Confirm the client points to the same /mcp URL used during authorization, then reconnect.
Invalid MCP project context	A project-specific server URL does not match the project in the token.	Disconnect and reconnect using the project-specific URL for the target project.
Missing MCP project context / Missing MCP project roles	The token has no project selected or no active role in it.	Reconnect and make sure you select a project, or use a project-specific URL for a project where you are an active member.

A tool reports Missing MCP scope: mcp:write

The token does not include the write scope required for tools that create, change, run, or bill something. Disconnect and reconnect the MCP server, then approve the requested scopes during authorization. If your client lets you choose scopes manually, include both mcp:read and mcp:write.

The assistant says there are no data marts

Reporting tools use published Data Marts that your project role lets you see. Setup tools can inspect visible drafts and complete authorized configuration. When there is none, list_data_marts, get_relevant_data_marts_by_prompt, and summarize_data_catalog return getting_started instead of a bare empty list, and the assistant explains what a data mart is and what to do next rather than retrying the search or querying data:

Field	Description
can_create_data_marts	Whether your role may create data marts (Project Admin or Data Owner)
create_data_mart_url	The page in OWOX Data Marts where a new data mart is created
data_marts_url	The Data Marts list of the connected project
guides	Links to the core concepts, connector-based, and SQL-based data mart guides
draft_data_marts	Visible drafts available through setup tools; reporting tools require publication
instructions	Internal guidance the assistant relays to you

Authorized users can create and publish Data Marts through MCP. To continue:

• Project Admin or Data Owner with write scope: use the Data Mart setup workflow. Inspect an existing draft before creating another Data Mart. You can also use create_data_mart_url in the web app. A connection with read scope alone must obtain write scope before setup mutations.
• Business User: ask a Project Admin or a Data Owner of the project to create and publish a data mart and share it with you for reporting.

After publication and any initial connector run, ask the assistant to continue reporting discovery. Reconnection is only needed if the connection lacks required write scope.

The wrong project is connected

Project selection is fixed at authorization time. See Switch projects or disconnect for how to reconnect and choose a different project or use another project-specific URL.

A query_data_mart call fails

A failed query costs nothing — OWOX bills a call only after it succeeds. This covers queries that time out, queries you cancel, and queries the credit limit blocks.

If the assistant reports that the project is out of credits, query_data_mart has hit its credit limit — upgrade the plan to keep querying (the read-only tools keep working). If it says a field wasn’t found, it likely guessed a field name; ask it to check the data mart’s fields first with get_data_mart_details_by_id, then re-run the query.

A Google Sheets destination is missing after browser setup

For Google Sheets without credential_id, add_destination starts Credential setup. It does not create a destination. The user must complete the browser form with the same OWOX account that connected MCP. The user must also be a member of the connected project.

Call get_credential_setup_status with the returned setup_id. If the status is pending, repeat the call after the user completes the form. If the status is completed, call add_destination again with the exact credential_id and the intended destination title. Use the returned destination_id for reports. If setup is cancelled, expired or missing, first recover the saved Credential as described in Credential management.

A run_report call fails

If the report uses a pull-based destination such as Looker Studio, it cannot be started through run_report. If the error says the report is already running or pending, use get_report_run_status for the existing run_id if you have it, or check Run History in OWOX Data Marts before starting another run.

add_report returns initial_run.status: failed_to_queue

The report was created successfully, but its first run was not queued. Do not call add_report again because that would create a duplicate report and, for Google Sheets, another file. Call run_report once with the returned report_id, then poll get_report_run_status with its run_id. The same applies when update_report returns run.status: failed_to_queue — the update is saved; retry delivery with run_report.

add_report returns error_code: similar_report_exists

Nothing was created: you already have a report exporting the same fields from this data mart to this destination, and the response carries it under existing_report. Ask the assistant to change that report instead (it calls update_report), or say explicitly that you want a separate report — the assistant then retries with allow_similar: true.

add_report with spreadsheet_id fails to open the spreadsheet

The destination’s connected Google account must be able to edit the spreadsheet. Share the spreadsheet with that account (see Google Sheets destination), or omit spreadsheet_id to create a new file. A sheet with the report’s name must not exist yet in that spreadsheet — pick another report name if it does.

Related docs

• Roles and permissions
• Destination Management
• Google Sheets destination
• Report Triggers
• API Keys
